TBA FireFly Titan Lite (Horizontal) - 90:60

TBA FireFly Titan Lite (Horizontal) – 90:60

Availability: In Stock

£603.78 inc. VAT: £724.54

FIREFLY Titan Lite Horizontal 90:60 is a lightweight flexible fire barrier designed to provide fire compartmentation of larger concealed spaces and voids within buildings, offering 90 minutes Integrity and 60 minutes Insulation.

A 3-layer system to offer the highest horizontal performance in the FIREFLY range of barriers.

Any questions regarding TBA FireFly products don’t hesitate to contact the team at [email protected] or 01752690997

SKU: TBA-TITAN-HORIZONTAL Categories: , ,
FIREFLY Titan Lite Horizontal 90:60 is a lightweight flexible fire barrier designed to provide fire compartmentalization of larger concealed spaces and voids within buildings, offering 90 minutes Integrity and 60 minutes Insulation. A 3-layer system to offer the highest horizontal performance in the FIREFLY range of barriers.

USE AREAS
Used primarily in roof voids and lofts to achieve fire-rated compartmentalization lines throughout a building.

Extensively used in social housing, care homes and
healthcare, separating accommodation and living spaces.

Also used in larger areas within industrial, warehousing, food processing, data centres and offices to create required compartmentalization zones.

CONSTRUCTION

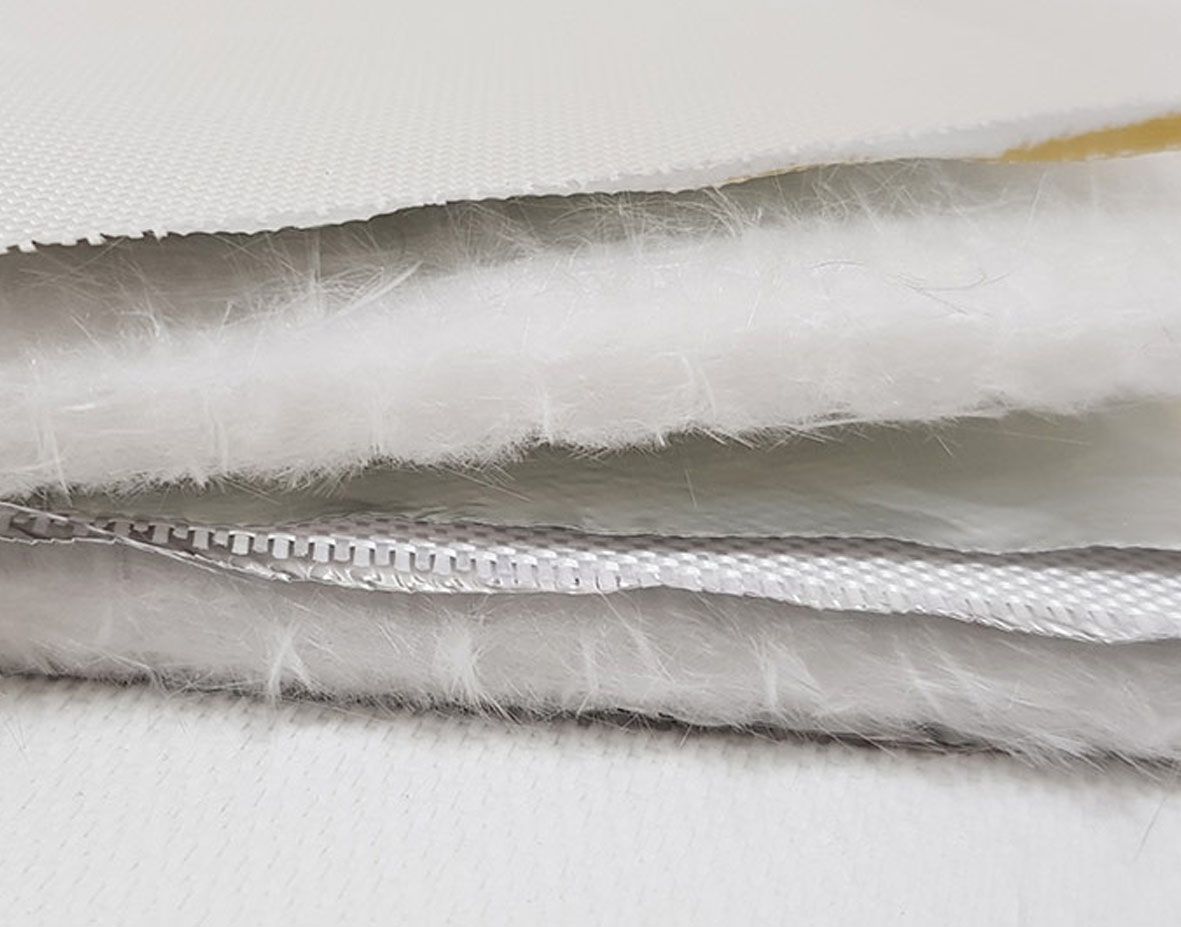

FIREFLY Titan Lite Horizontal 90:60 is manufactured using layers of aluminium, woven and non woven glass fibre, specially treated with a proprietary coated to greatly increase fire resistance. Product is supplied to be installed as a 3-layer system.


KEY BENEFITS

  • FIREFLY Titan Lite Horizontal 90:60 provides a combined 90 minutes Integrity and 60 minutes Insulation
  • Maintains fire-rated compartmentalization lines through roof voids and difficult to access areas where flexibility is an advantage
  • A 3-layer installation system to achieve the highest levels of performance within the FIREFLY range
  • Lightweight, flexible, easy to handle and cut
  • Installer-friendly fire barrier system
  • Fully tested to BS476 and independently certified by IFCC/Kiwa
  • FIREFLY Titan Lite Horizontal 90:60 is supported by a full range of FIREFLY ancillary products (stainless steel staples, sealants, fixing, supports) to provide the ability to install a fully tested system



DESCRIPTION
Lightweight flexible fire barrier – combined Integrity and Insulation

CERTIFICATION
Third party certified by IFCC/Kiwa. Certificate number: IFCC 1463

APPLICATION
Horizontal use only (see Titan Lite 120:60 for alternative) – 3-layer staggered system

PROPERTIES
Description: Non-toxic, user-friendly, flexible, durable. Easy to manipulate and shape
Coating: Chemical treatment to optimise thermal properties and help prevent fibre migration
Min Thickness: 18mm

SPECIFICATIONS
Exceeds 90 minutes Integrity and 60 minutes Insulation when tested to BS 476 parts 20/22:1987

ASSESSMENT IFCC
Fields of Application covering extended drops, penetrations, ceiling systems, widths and installation requirements

CLASSIFICATIONS
Tested to BS 476 parts 6 and 7 – Pass (propagation and surface spread of flame)

DIMENSIONS AND PACKAGING
Width: 127cm
Roll Length: 6 linear metres
Roll Area: 7.62 sqm
Packed: Concertinaed and individually wrapped in polythene
Weight: 4.2kg/m2 minimum
