USE AREAS
Commonly installed to provide fire protection below mezzanine floors and balcony structures.
Also used in conjunction with the relevant Vertical barrier to create the Horizontal element of protected zones.
Utilised within roof voids and lofts to achieve fire-rated compartmentation lines throughout a building, in applications including social housing, care homes, healthcare and industrial/commercial buildings.
CONSTRUCTION

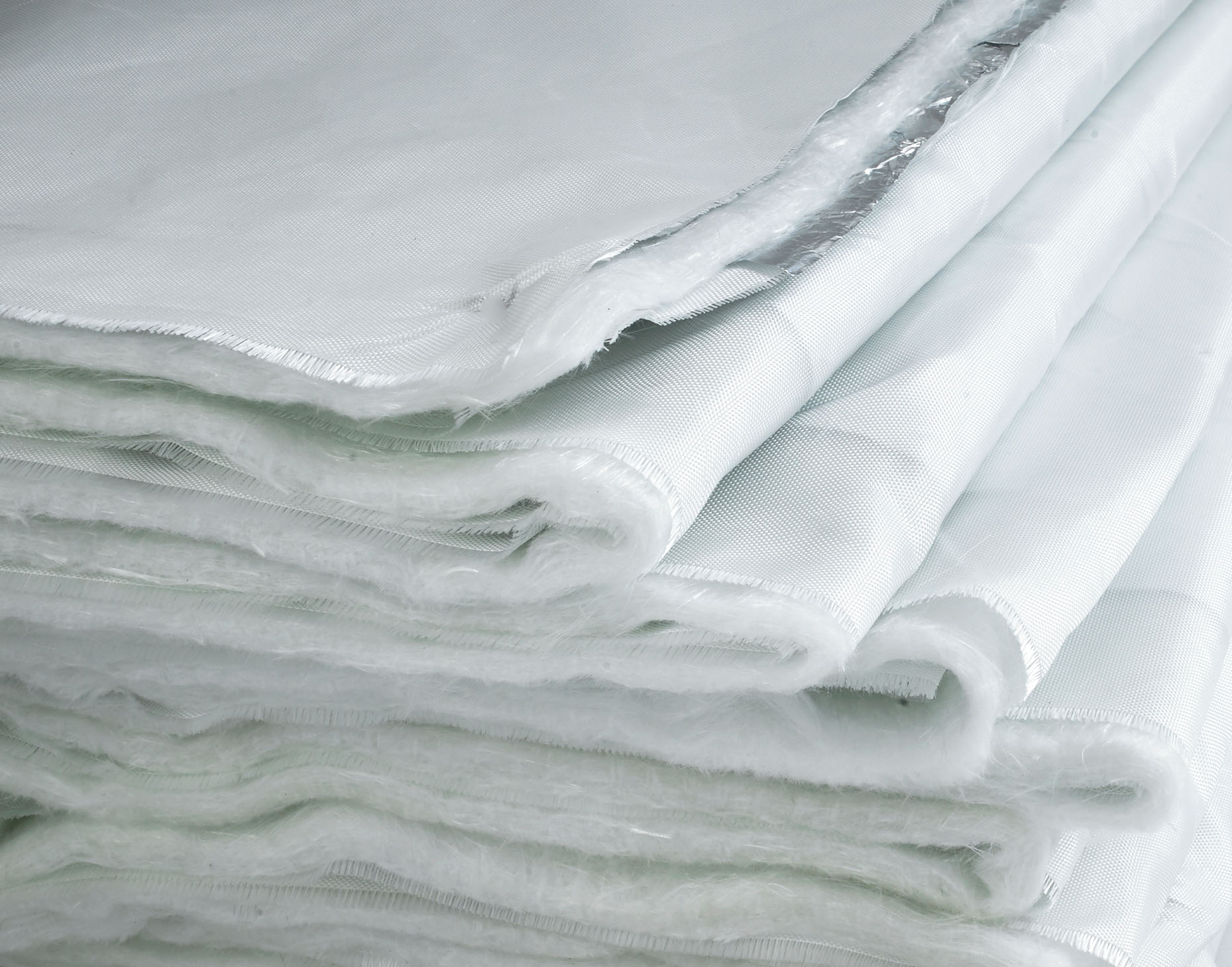

FIREFLY Zeus Horizontal 60:30 is manufactured using layers of aluminium, woven and nonwoven glass fibre, specially treated with a proprietary coated to greatly increase fire resistance.
KEY BENEFITS
- FIREFLY Zeus Horizontal 60:30 provides a combined 60 minutes Integrity and 30 minutes Insulation, tested in a Horizontal application specifically
- Maintains fire-rated compartmentation lines through roof voids and difficult to access areas where flexibility is an advantage
- Lightweight, flexible, easy to handle and cut
- Installer-friendly fire barrier system
- Fully tested to BS476 and independently certified by IFCC/Kiwa
- FIREFLY® Zeus Horizontal 60:30 is supported by a full range of FIREFLY ancillary products (stainless steel staples, sealants, fixing, supports) to provide the ability to install a fully tested system
TITLE
FIREFLY Zeus Horizontal 60:30
DESCRIPTION
Lightweight flexible fire barrier – combined Integrity and Insulation
CERTIFICATION
Third party certified by IFCC/Kiwa. Certificate number: IFCC 1532
APPLICATION
Horizontal use only (see Zeus Lite 90:30 for vertical alternative)
PROPERTIES
Description: Non-toxic, user-friendly, flexible, durable. Easy to manipulate and shape
Coating: Chemical treatment to optimise thermal properties and help prevent fibre migration
Min Thickness: 10mm
SPECIFICATIONS
Exceeds 60 minutes Integrity and 30 minutes Insulation when tested to BS 476 parts 20/22:1987
ASSESSMENT IFCC
Fields of Application covering ceiling systems, widths and installation requirements
CLASSIFICATIONS
Tested to BS 476 parts 6 and 7 – Pass (propagation and surface spread of flame)
DIMENSIONS AND PACKAGING
Width: 130cm
Roll Length: 6 linear metres
Roll Area: 7.8 sqm
Packed: Concertinaed and individually wrapped in polythene
Weight: 2.2kg/m2 minimum
Any questions regarding TBA FireFly products don’t hesitate to contact the team at [email protected] or 01752690997
