Product Description

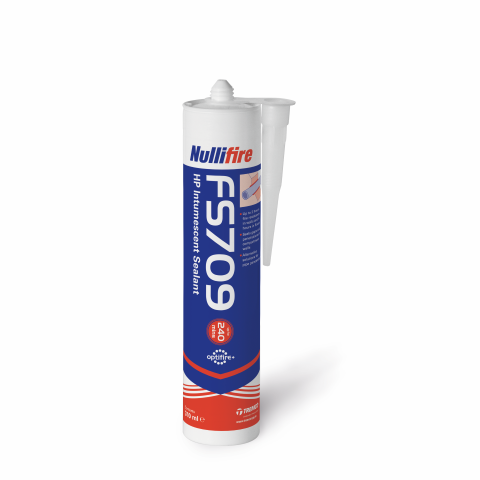

FS709 HP is a high-expansion, pressure-exerting graphite intumescent sealant engineered to restore the fire resistance of compartment walls and floors penetrated by various services. Upon exposure to fire, FS709 expands to close off penetrations, delivering robust fire protection. It is compatible with flexible walls and rigid walls (100 mm or thicker), rigid floors (150 mm or thicker), and FB750 Intubatt Coated Batts.
Usage and Purpose
FS709 HP is specifically designed to seal gaps and service penetrations in compartment walls and floors, providing up to 4 hours of fire resistance. This innovative sealant eliminates the need for pipe closers or wrap systems by effectively sealing combustible pipe penetrations in the event of a fire.
FS709 has been tested and approved for use with:
- Combustible pipes up to 125 mm in diameter, including ABS, PE, PP, HDPE, PVC, and PEX.
- Insulated non-combustible pipes up to 160 mm in diameter with insulation types such as nitrile rubber, glass fibre, or rock fibre (up to 60 mm insulation thickness).
- Cables, both individual and grouped, as well as cable trays, ladders, and baskets up to 500 mm, and cable bundles up to 100 mm.
This product is suitable for dry internal conditions. For applications in high-humidity or other challenging environments, consult the Technical Team.
Technical and Safety Guidance
Before application, review the Safety Data Sheet (SDS) and all relevant pre-application guidance to ensure proper use. Download the latest product documents before starting your project.
Key Product Benefits
FS709 HP offers up to 4 hours of fire resistance, tested to EN 1366-3 and EN 1366-4 standards. It is versatile, easy to apply, and compatible with FB750 Intubatt Coated Batts. Tested for use with combustible pipes, insulated non-combustible pipes, cables, trays, ladders, baskets, and cable bundles, FS709 accommodates openings up to 600 x 600 mm and linear gaps up to 25 mm.
For added assurance, it features the Optifire®+ traceability identifier.
For optimal performance and safety, follow all application instructions and contact the IPF Technical Team for specific queries or advice regarding non-standard conditions.
For expert advice or further information, reach out to our team at [email protected] or call 01752 690997 to discuss your project needs and how this product can provide the fire protection solution you require.
