USE AREAS
Ideally suited to work alongside flexible fire barriers in:
- Trapezoidal profile roofs
- Roof/floor platforms in concrete/metal
- Penetration details
- I-Beams and awkward shapes to present a straight edge to the barrier
- Friction fitted into tight spaces within eaves

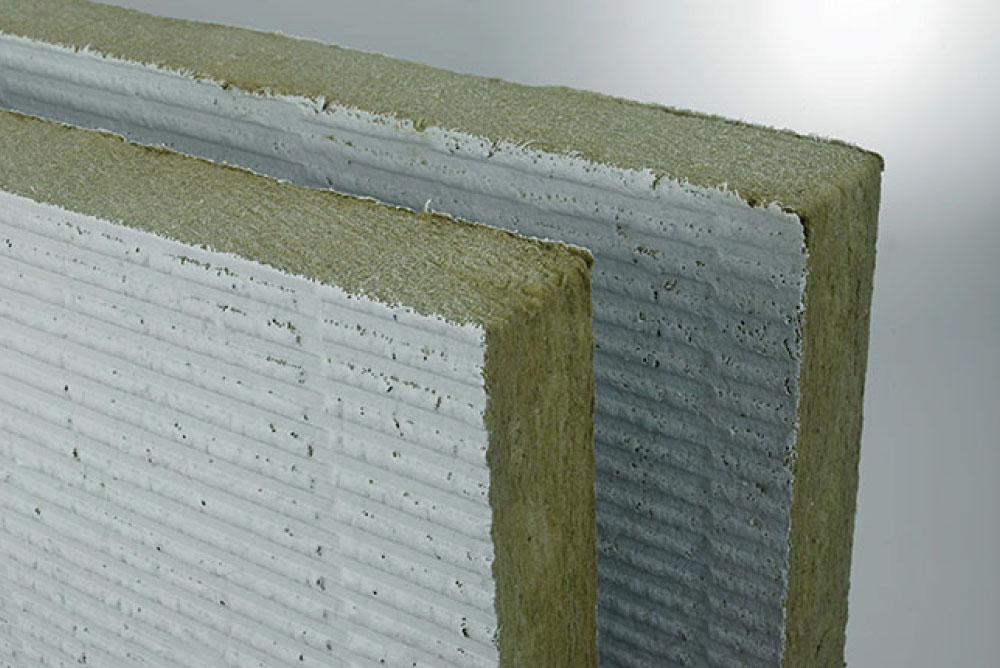

CONSTRUCTION
Layers of mineral wool are combined to create a 50mm/60mm thick board product, with an ablative coating factory-applied to both sides. The board has a weight of 180kg/m3 with a rigidity that makes it suitable for friction fitting.
KEY BENEFITS
- Batt solution tested and certified for use as part of a FIREFLY flexible fire barrier system
- Offers convenience of a batt without compromising the fire integrityof the overall system, maintaining the fire performance of the system it is used with
- Tested to BS EN 1363-1:2020 as part of a barrier system, for use vertically and horizontally
- Higher density 180kg/m3 provides high expansion and improved performance
- Tested on timber and for use horizontally between roof trusses/joists
- Ideal for use in tight areas, restricted access and multiple penetrations
- Typical batt aesthetic with a white, profiled surface
TITLE
FIREFLY® FB180 Ablative Batt
DESCRIPTION
Mineral fibre ablative batt for use with FIREFLY flexible barriers
CERTIFICATION
Fully tested with 3rd party certification under application
SPECIFICATION
Meets requirements of BS EN 1363-1:2020 & BS EN 1366-3:2021 Penetration Seals, tested as a system
Suitable for vertical and horizontal use
PROPERTIES
Layered mineral fibre, ablative coating on both sides, white appearance
DIMENSIONS
1200 x 600 x 50mm / 1200 x 600 x 60mm
PACKAGING
Supplied as 1 standard size batt, bagged to provide protection in transit and on site.
Do not allow the batt to be exposed to rain or water.
