USE AREAS
Used primarily in roof voids and lofts to achieve fire-rated compartmentation lines throughout a building.
Extensively used in social housing, care homes and healthcare, separating accommodation and living spaces.
Also used in larger areas within industrial, warehousing, food processing, data centres and offices to create required compartmentation zones.
CONSTRUCTION

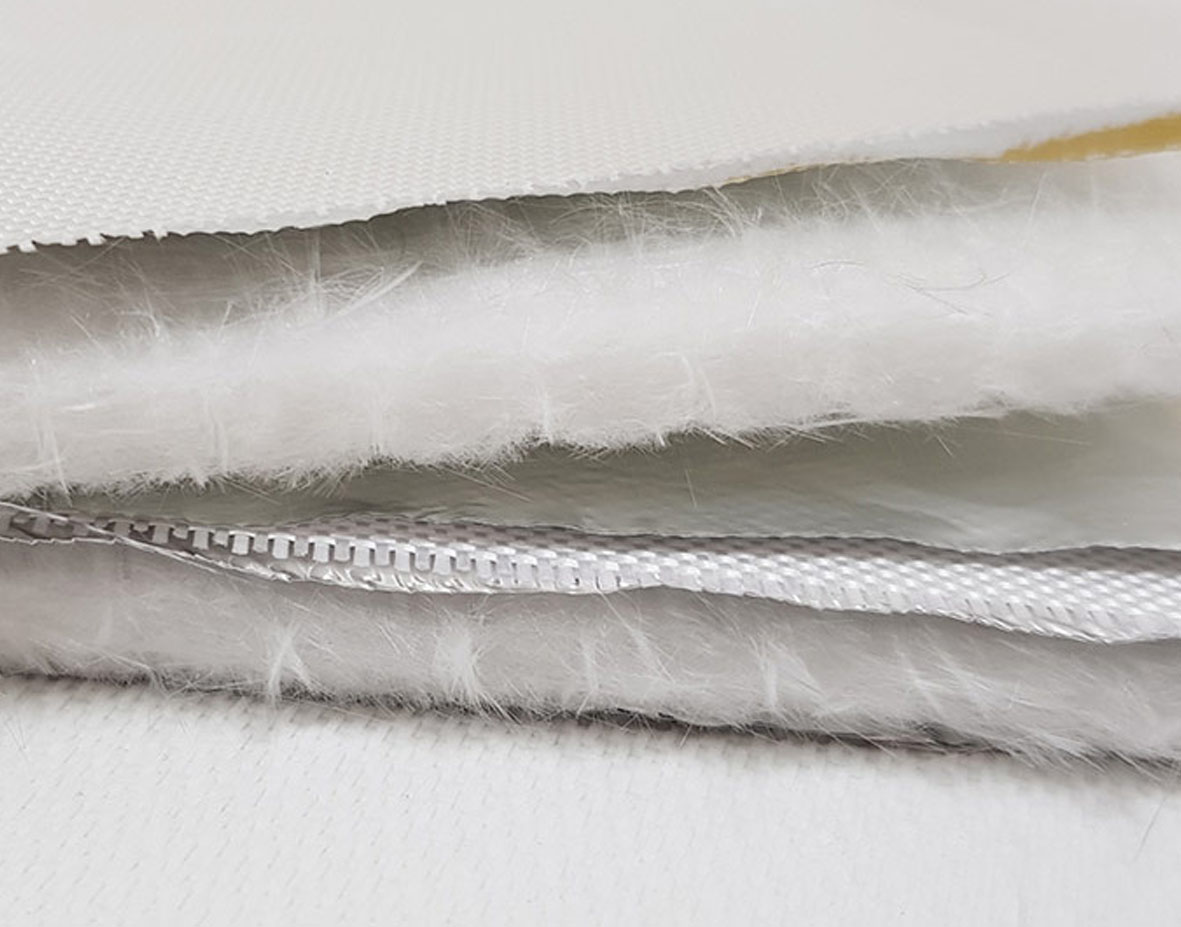

FIREFLY Titan Lite 120:60 is manufactured using layers of aluminium, woven and nonwoven glass fibre, specially treated with a proprietary coated to greatly increase fire resistance. Product is supplied to be installed as a 3-layer system.
KEY BENEFITS
- FIREFLY Titan Lite 120:60 provides a combined 120 minutes Integrity and 60 minutes Insulation
- Maintains fire-rated compartmentation lines through roof voids and difficult to access areas where flexibility is an advantage
- A 3-layer installation system to achieve the highest levels of performance within the FIREFLY range
- Lightweight, flexible, easy to handle and cut
- Installer-friendly fire barrier system
- Fully tested to BS476 and independently certified by IFCC/Kiwa
- FIREFLY Titan Lite 120:60 is supported by a full range of FIREFLY ancillary products (stainless steel staples, sealants, fixing, supports) to provide the ability to install a fully tested system
DESCRIPTION
Lightweight flexible fire barrier – combined Integrity and Insulation
CERTIFICATION
Third party certified by IFCC/Kiwa. Certificate number: IFCC 1463
APPLICATION
Vertical use only (see Titan Lite Horizontal 90:60 for alternative) – 3-layer staggered system
PROPERTIES
Description: Non-toxic, user-friendly, flexible, durable. Easy to manipulate and shape
Coating: Chemical treatment to optimise thermal properties and help prevent fibre migration
Min Thickness: 18mm
SPECIFICATIONS
Exceeds 120 minutes Integrity and 60 minutes Insulation when tested to BS 476 parts 20/22:1987
ASSESSMENT IFCC
Fields of Application covering extended drops, penetrations, ceiling systems, widths and installation requirements
CLASSIFICATIONS
Tested to BS 476 parts 6 and 7 – Pass (propagation and surface spread of flame)
DIMENSIONS AND PACKAGING
Width: 127cm
Roll Length: 6 linear metres
Roll Area: 7.62 sqm
Packed: Concertinaed and individually wrapped in polythene
Weight: 4.2kg/m2 minimum
Any questions regarding TBA FireFly products don’t hesitate to contact the team at [email protected] or 01752690997
