Intuwrap by Quelfire – QWW Pipe Wrap

Availability: In Stock

£4.42£13.91

Quelfire’s QWW Intuwrap can be used within concrete floors, on plastic pipes including: PVC, PVC-U, PE, HDPE, MDPE & PP pipes.

There are options for pipes between 32mm and 160mm.

This product has been tested to BSEN 1366-3: 2009

Classified according to EN 13501-2: 2007 + A1: 2009

It carries a CE Mark

This pipe wrap has been tested to Type X durability, meaning it is suitable for conditions exposed to weathering.

Clear

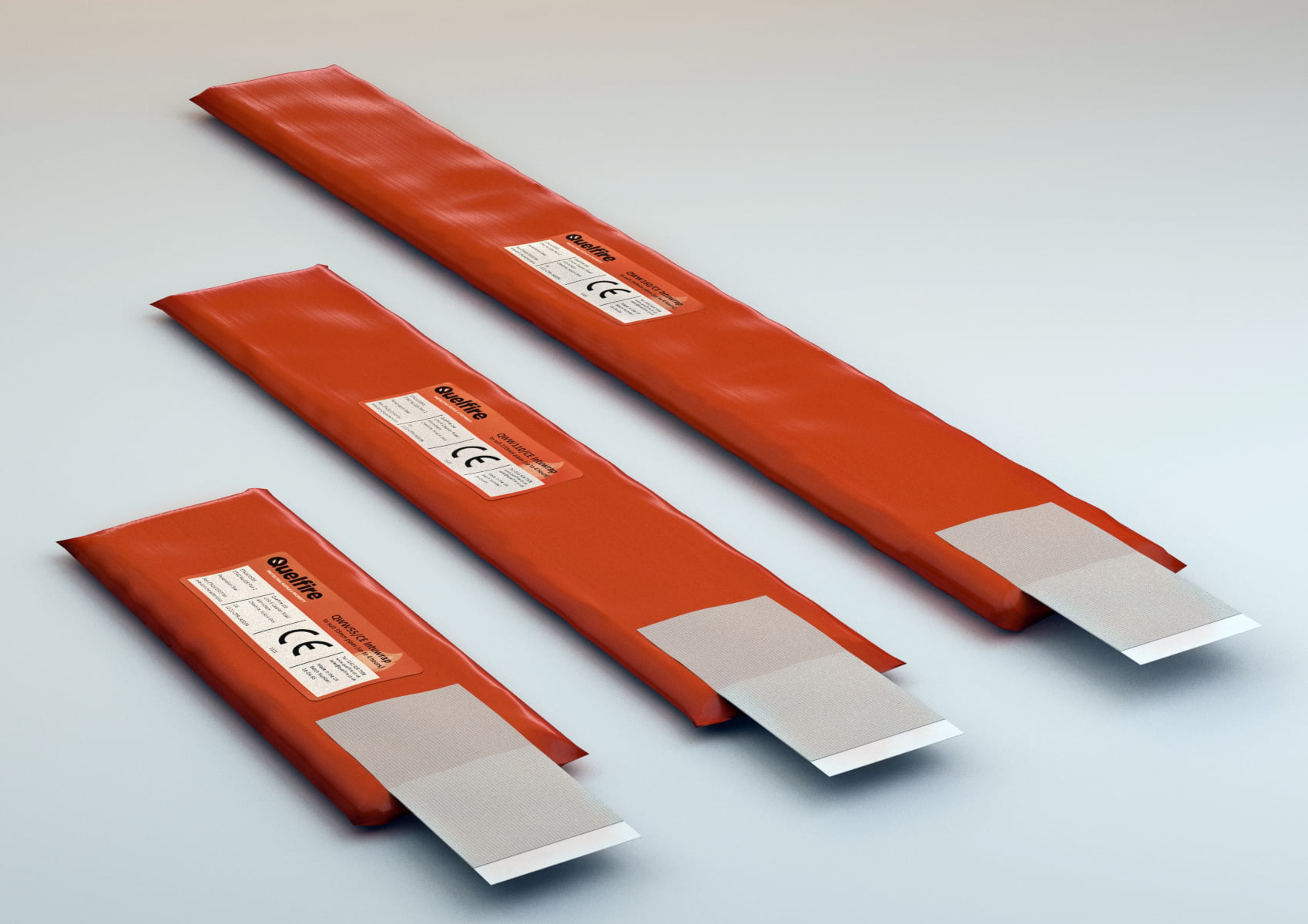

Intuwrap by Quelfire

Quelfire’s QWW Intuwrap can be used within concrete floors, on plastic pipes including: PVC, PVC-U, PE, HDPE, MDPE & PP pipes.

This product comes in multiple different sizes, to be adaptable for different pipe sizes. For example, a 32mm Intuwrap can be used on a 32mm pipe (external pipe diameter measurement).

For the Quelfire Continuous Intuwrap (QuelCoil) please click here.

Product Code Pipe Size (mm) Approx. space
needed around pipe
to fit QWW (mm)
Recommended hole
diameter (mm)
QWW Length (mm) Fire Rating
QWW32/CE 32Ø 5 42Ø 60 Up to 4 Hours
QWW40/CE 40Ø 5 50Ø 60 Up to 4 Hours
QWW50/CE 50Ø 5 60Ø 60 Up to 4 Hours
QWW55/CE 55Ø 10 74Ø 60 Up to 4 Hours
QWW63/CE 63Ø 10 82Ø 60 Up to 4 Hours
QWW75/CE 75Ø 10 94Ø 60 Up to 4 Hours
QWW82/CE 82Ø 10 102Ø 60 Up to 4 Hours
QWW90/CE 90Ø 10 110Ø 60 Up to 4 Hours
QWW110/CE 110Ø 12 132Ø 60 Up to 4 Hours
QWW125/CE 125Ø 15 155Ø 60 Up to 4 Hours
QWW160/CE 160Ø 22 204Ø 60 Up to 4 Hours

Product Testing

This product has been tested to BSEN 1366-3: 2009

Classified according to EN 13501-2: 2007 + A1: 2009

It carries a CE Mark

This pipe wrap has been tested to Type X durability, meaning it is suitable for conditions exposed to weathering.

Composition

The Quelfire pipe wraps are made from a graphite based intumescent material, which is encased into a polythene cover.

When hot, the intumescent softens and chars to plug the pipe and prevent the passage of smoke and fire.

Installation information

Refer to the table above to ensure that the correct sized holes are diamond drilled.

If the holes are too large, contact us for guidance.

Do not remove the orange plastic sleeve when installing Quelfire Intuwraps.

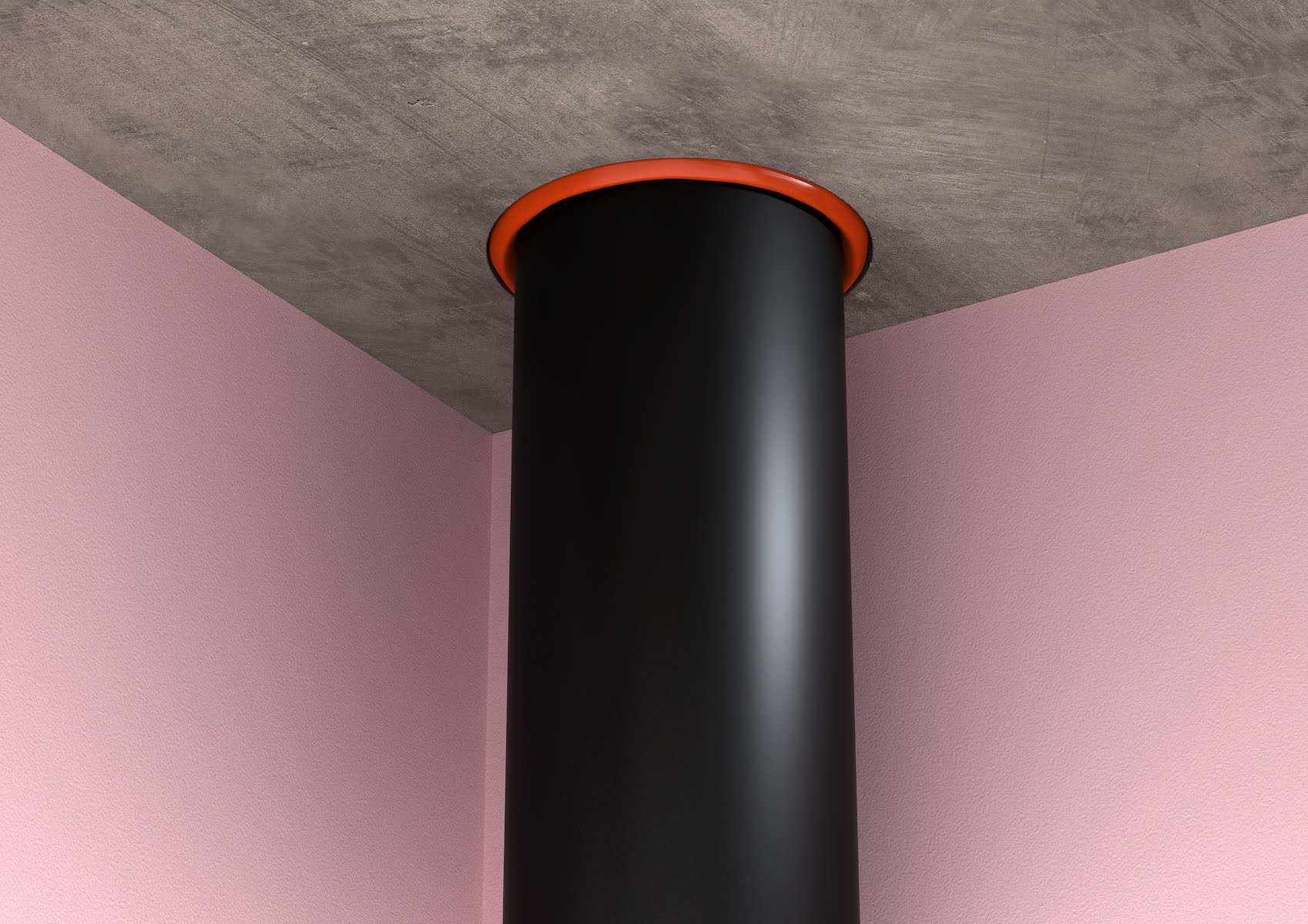

Use the self-adhesive tape on the wrap to secure it to the pipe. Please ensure that there is no gap around the wrap and that it is flush with the concrete slab or fire seal.

There is no need for any mechanical fixings.

For more installation guidance, contact our technical team on 01752 690997.

Other information

According to its assessment, it can be used in steel profile deck concrete composite floors.

Can be used alongside the QuelStop System, including the QF2 Fire Protection Compound.



For technical advice, please contact our technical team on 01752 690997.
