QuelCoil Endless Pipe Wrap

The QuelCoil intumescent pipe wrap is suitable for using on the following types of pipes:

• insulated non-combustible pipes
• combustible plastic pipes

In the following applications:

• Into solid masonry walls
• Into fire rated plasterboard partition walls (ensuring the specification of the wall and insulation is appropriate)
• Into the Quelstop Fire Batt
• Into QF2 Fire Protection Compound

Different layers of QuelCoil are needed for each pipe type and size. Please see the table below for more information.

Composition

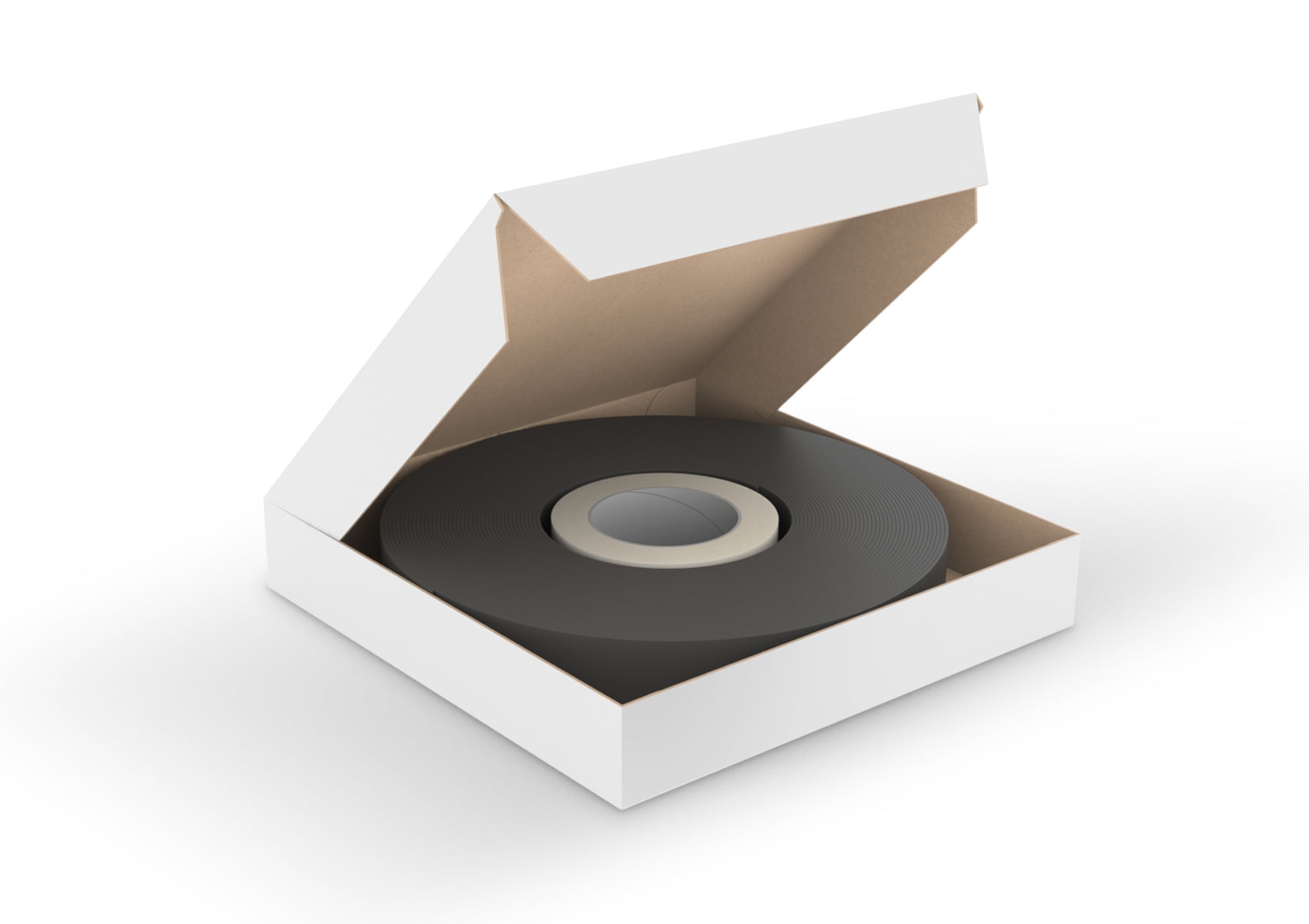

Each of these fire wraps measure 25m (length) x 50mm (width) x 2mm (thickness).

They are supplied with a roll of self-adhesive tape, to secure the wrap to services.

Both the wrap and the tape can be cut to size.

Testing

Tested to BS EN 1366-3:2009

This product carries a CE mark

Type X Durability Testing

Classified According to EN 13501-2: 2007 + A1: 2009

Up to 2 hour fire rating (EI120)

Performance Table

Installation

Please refer to the table above, to determine how many layers of the QuelCoil pipe wrap are required for your pipes.

This product should be cut to length on site.

Do not install with mechanical fixings – simply affix using the self-adhesive tape.

Ensure that there is no gapping around the outside of this pipe wrap once it is installed. Therefore, consideration must be taken when drilling holes for services.

If the holes are too large, this product must be installed in conjunction with the Quelstop Fire Batt system.

The Intuwrap also must be fitted flush with the underside of the concrete slab, fire seal, the face of the wall or the Quelstop Fire Batt.

Please consult our technical department for further advice.
