Quelstop Fire Batt – QB50
The Quelfire 50mm Quelstop Fire Batt is designed to reinstate the fire rating of walls and floors when they have service penetrations.

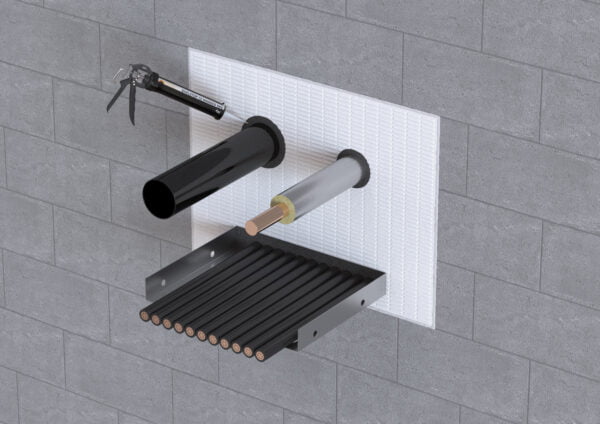

Specifically, the penetrations could include: cables, cable bunches, cable trays, cable ladders and non-combustible pipes. For combustible pipes and insulated non-combustible pipes, additional products will be needed.
These fire batts provide up to 2 hours fire resistance and can be used in many applications, such as flexible walls, rigid walls and floors.
Either a single or a double batt is needed. Please contact us on 01752 690997 for technical advice. This product can also be fitted as a pattress fit (or face fit).
These batts are 1200mm x 600mm, 50mm thick, 140kg/m³ density
Packaging – they arrive individually wrapped in polythene on a pallet.
Storage temperature -> +5 to +40ºC
Fire and other testing
Fire resistance testing to BS EN 1366-3:2009
EI30, EI90, EI120
Classified to EN 13501-2: 2007 + A1: 2009
Acoustic tested to EN 10140 to 60dB
This product must always be installed using QuelStop Intumescent Acrylic Sealant. Apply this product to all cuts, joints and exposed edges.
Services which penetrate through the QuelStop Fire Batt may need additional Quelfire products for adequate firestopping.
We advise you contact our technical department if advice is needed.
To order this product, please contact us on 01752 690997.
