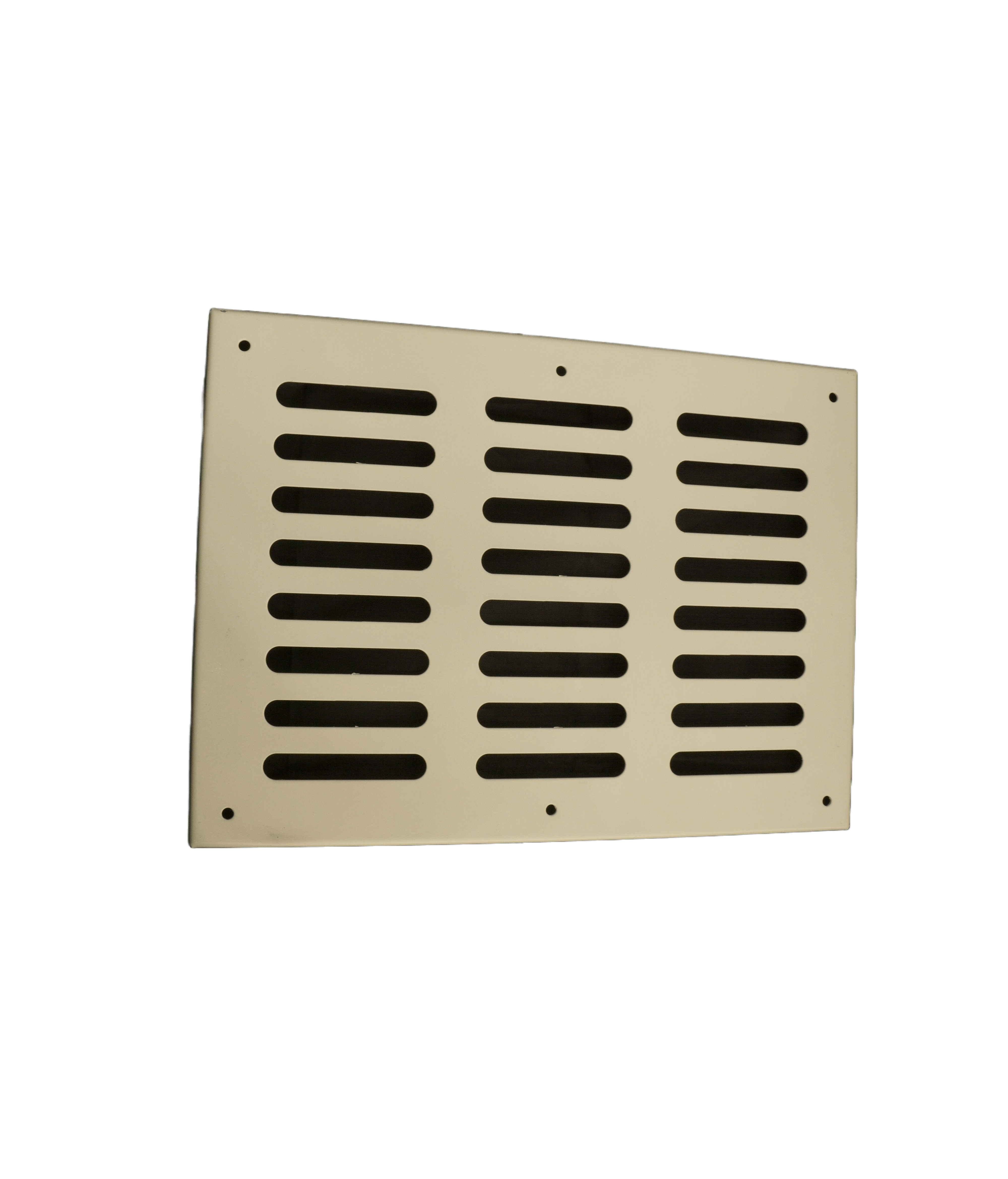

Plain Cover Plates by Envirograf

The Envirograf plain cover plates are designed to be used over the Envirograf Block Grilles to hide them, whilst still allow airflow.

By themselves, they do not provide any fire protection.

They come in a variety of colours: white, brown and stainless steel. Please contact us to order these in stainless steel.

They also come in two varieties, slotted and louvred grilles. Louvred plates provide a screen to viewing what is behind them. The slotted versions allow you to view right through, but provide more ventilation.

You should order these plain cover plates to be at least 50mm larger than the hole size. So for a 300×300 hole, order the MGP5 grille, measuring 350x350mm.

If a bespoke size is needed, do contact us on 01752 690997 or sales@fireproofpaint.co.uk.

Bespoke colours can also be quoted for.

Order References

REF                    EXT SIZE               HOLE SIZE          NO. OF

                              (H x W)                 (H x W)              OPENINGS

MGP1                     150 x 200              100 x 150              010

MGP2                     200 x 200              150 x 150              014

MGP3                     275 x 200              225 x 150              022

MGP3A                  200 x 275              150 x 225              024

MGP4                     275 x 275              225 x 225              030

MGP4A                  300 x 300              250 x 250              033

MGP5                     350 x 350              300 x 300              052

MGP6                     350 x 425              300 x 375              075

MGP8                     425 x 425              375 x 375              090

MGP8A                  350 x 500              300 x 450              084

MGP9                     500 x 500              450 x 450              126

MGP11                  550 x 550              500 x 500              132
