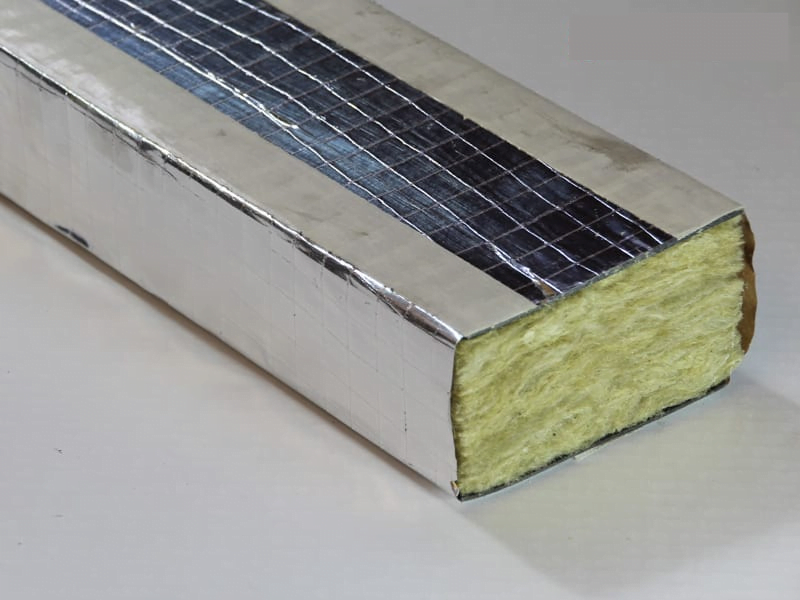

Envirograf Intumescent Fire Stop Block

A non-inflammable, compressible and foil clad intumescent coated fibre block, 1200mm long. Designed to form a fire and smoke barrier and easily cut with a sharp knife. The blocks have self adhesive tape for joining together. Available in the standard sizes; others sizes can be made to order. Please phone for a quote. For use in walls or floors, and can be easily removed for maintenance of services. Ideal as a fire break under suspended computer floors, or between screen walling and concrete floors. They can be used with Envirograf® wraps and pipe collars for PVC pipes and electrical services. (IB1 = 1 hour protection, IB2 = 2 hours’ protection)

Advantages:

Great for fire-stopping voids in compartmentalised walls and floors- Easily installed around existing services and can be cut to shape to accommodate new ones.

Can be used in conjunction with intumescent wraps or collars to provide up to 2 hours’ protection or more for services passing through walls and floors.

Can be used between screen walling and concrete floors as a firebreak.

Application Instructions:

The Intumescent Blocks can be cut with a sharp knife or hacksaw blade, fitting into the opening to form a fire seal. Can be cut and pushed around services and pipes.

Where plastic pipes are 75mm or over then use Envirograf Wrap or Pipe Sleeve fixing into the blocks.

Where blocks are going over cable trays, leave a small gap and use Envirograf Product 29 Cable Tray Pillows.

The blocks have double-sided tape around the edges so they can be adhered to each other to form a smoke seal.

Where there are any open joints use Envirograf Product 63 Intumescent Cement Filler of Product 61 CS Stopper.

Envirograf Intumescent Blocks can be used between screen walling and concrete floors as a firebreak.
