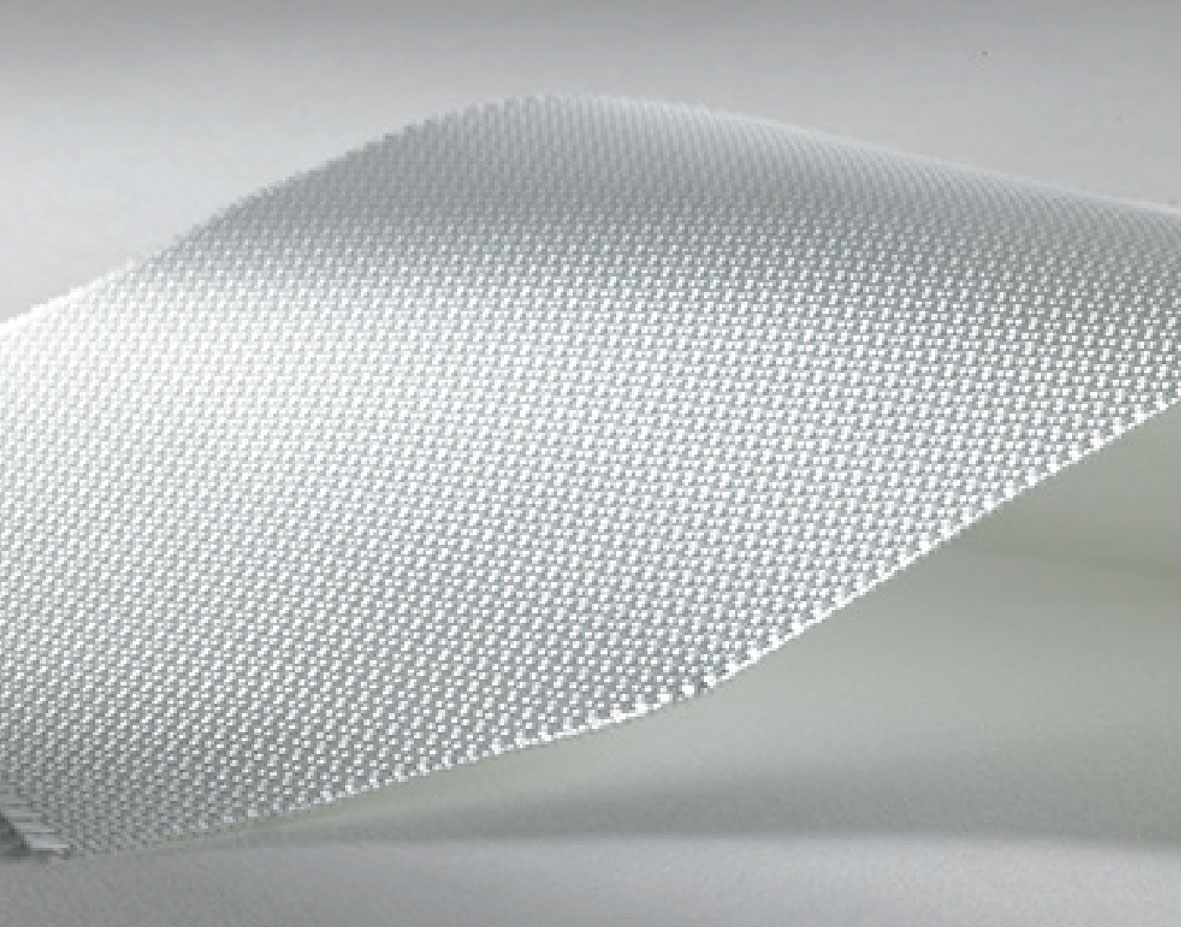

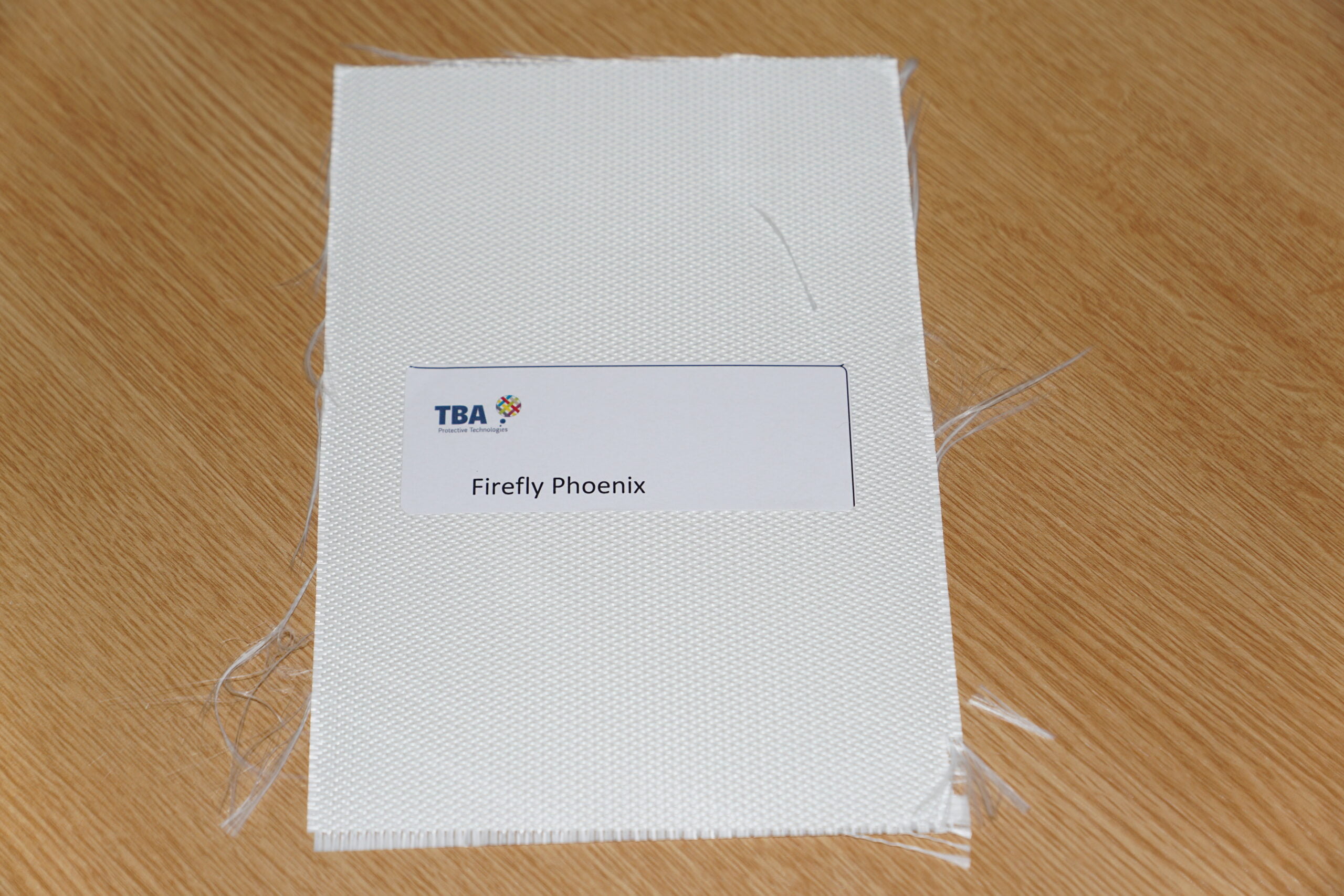

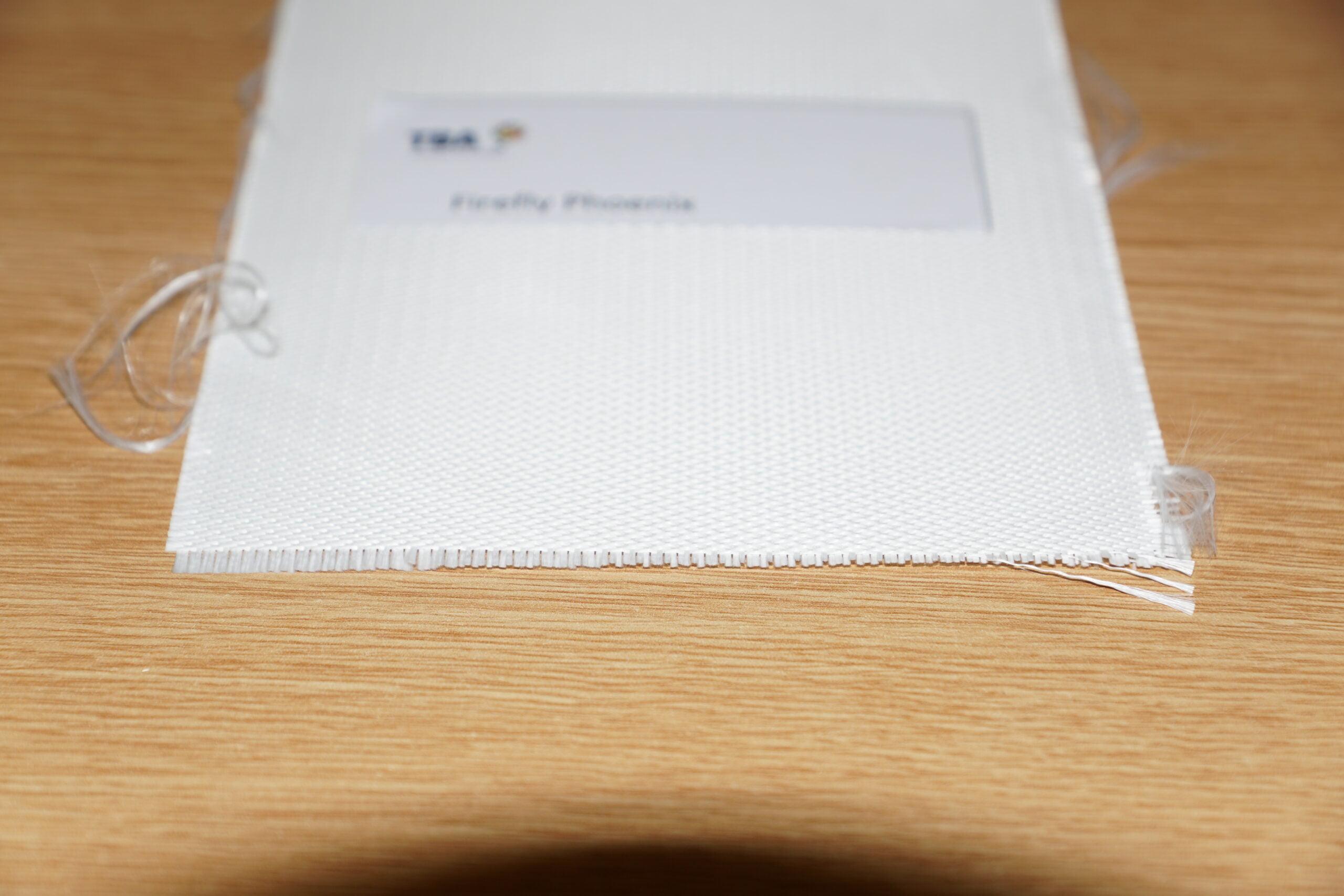

Firefly Phoenix Fire Barrier is a lightweight, flexible and easy-to-install passive fire protection product.
Firefly products were initially developed to provide compartmentation, typically within roof voids created by suspnded and modular ceilings, thus giving the Client, Specifier and Installer a lightweight, flexible, easy to install solution to passive fire protection requirements. Firefly products are suitable for installation into a vast range of different types of buildings, this includes Retail Outlets, Supermarkets, Schools, Manufacturing Plants, Loft Conversions etc. Most Firefly products are 3rd party accredited, by Certifire giving added confidence that the products supplied, are fit for purpose.
Technical Data
Filament FORTAGLAS™ ″E″ Glass Fabric with high temperature finish
Third Party Certification by Certifire
Tested in accordance with BS.476 Part 20.22
Weave: 3/1 Broken Twill
Weight: 440g/m² nominal
Thickness: 0.34mm nominal
Tensile Strength
Warp (N/50mm) 3840 nominal
Weft (N/50mm) 2240 nominal
Flammability
BS.5438 / 6249 ″A″ rating (highest possible pass) fabric is self-extinguishing when subject to this test.
Thermal conductivity: 1.0 W/mK for ″E″ glass
Roll Length: 10 metres or 25 metres nominal
Roll Width: 1.3 metres
This product can be installed in conjunction with the TBA Collaroll and TBA High Temperature Adhesive.
