120:60 FireHalt Fire Barrier

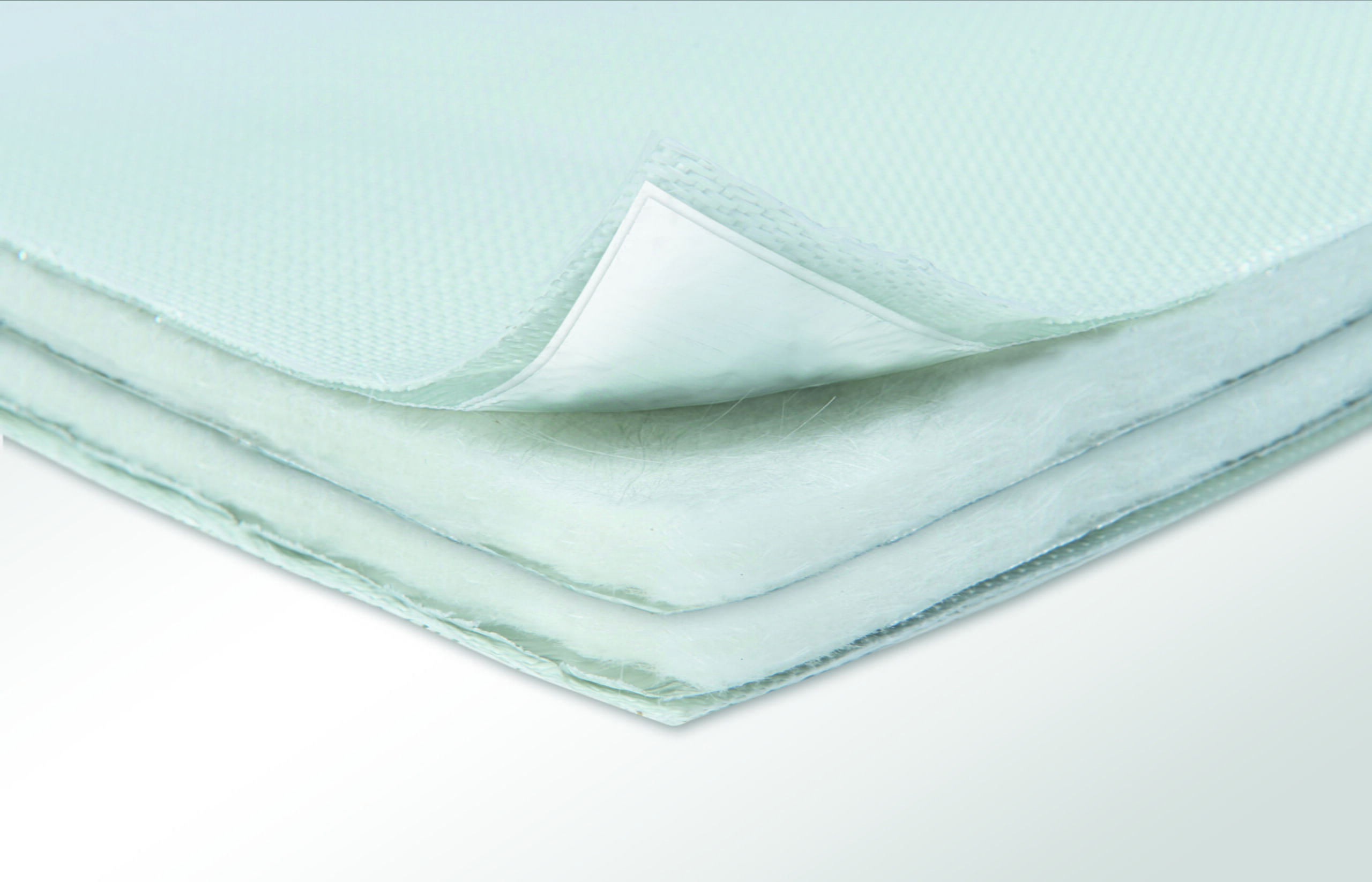

The 120:60 Cavity Fire Barrier is a lightweight and multi-layered symmetrical design which can be cut with scissors or knives. It is easy to fit and comes with fully illustrated instructions.

This barrier has been independently certified, tested and is coated with a non-toxic, high temperature finish. Flexible and durable with no respirable fibres. The Fire Cavity Barrier is coated with a food-safe and non-corrosive weavelock treatment and fire-resistant additive.

It is designed for roof cavities and concealed spaces and can act as a higher specification cavity barrier or a fire curtain which extends the fire rating of a compartment wall, situated directly below, up to the roof line or upper floor slab.

**The 120:60 Fire Barrier offers 120 minutes of integrity with 60 minutes of insulation. It has a lightweight design at 3.8kg/m2 and a thickness of 14mm. The Fire Barrier is 6.0m in length and 1.3m wide covering an area of 7.8m². The pack weight total is 29.6kg approximately.**

Fire Testing

The FireHalt cavity fire curtains have been tested by Warringtonfire, a leader in fire safety testing services, and certified by LPCB (Loss Prevention Certification Board).

The testing was conducted in accordance with BS476 p22 and found the curtain to achieve 120 mins integrity and 60 mins insulation.

It has also been tested to BS 476 part 6: 1989 Class 0 (Fire propagation) and BS 476 part 7: 1987 Class 1 (surface spread of flame)

ISO 1182 1990 (E) – Non Combustibility

IMO Resolution MSC.61(67) Part 1. Non Combustibility

Installation Instructions

This barrier has only been tested to be installed vertically.

10mm staples and galvanised mild steel stud sections will be needed for installation. Please see the data sheet for more information.

This product cannot be ordered online. Please contact us on 01752 690997 or sales@fireproofpaint.co.uk for a quote.

There is more information about our other fire curtains here.
