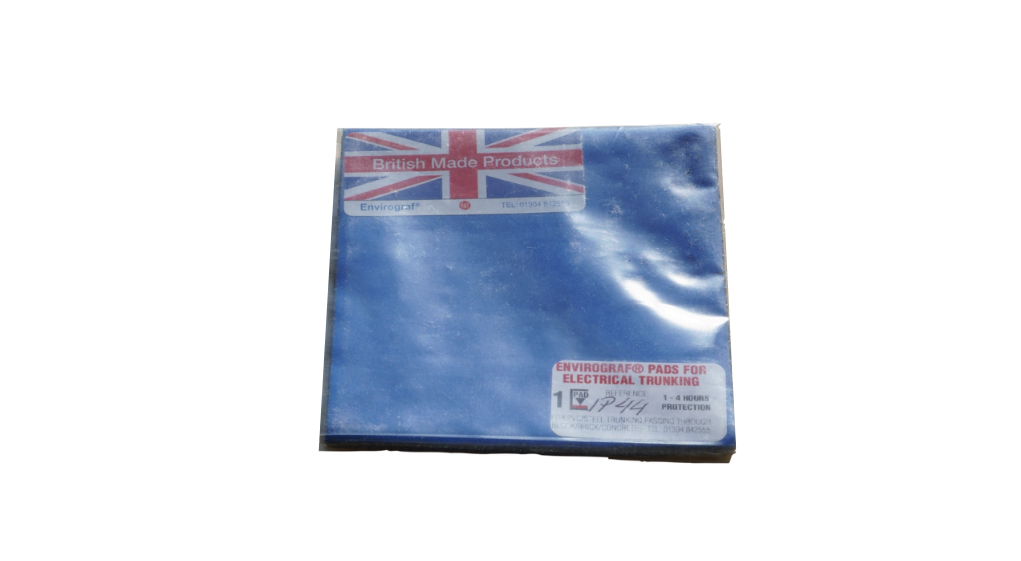

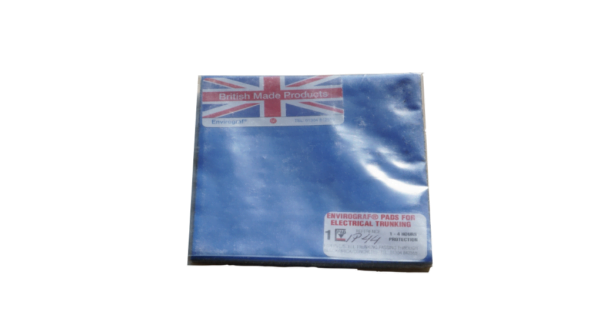

Intumescent Pads – by Envirograf

Availability: In Stock

£3.45£24.06

Envirograf’s intumescent pads have been designed for plastic and metal trunking. With their adhesive, you can affix them to the inside of the trunking.

They are suitable for multi-opening PVC trunking, with services passing between walls or ceilings.

They come in various sizes and can be cut to shape if necessary.

Select the size of your trunking in the drop down menu below to order online.

Clear

Intumescent Pads

Envirograf’s intumescent pads have been designed for plastic and metal trunking. With their adhesive, you can affix them to the inside of the trunking.

They are suitable for multi-opening PVC trunking, with services passing between walls or ceilings.

The intumescent material in the pads expands when hot, which in turn seals the trunking to prevent fire spread.

Extra wires are hazardous when they are not wired or supported correctly. When combustion occurs, fire can spread rapidly. This product can form part of an electrical compartmentation system, to contain fires within trunking.

This product can be cut to size, as it is lightweight and flexible.

It comes in a range of sizes, ranging from 50mm x 25mm, to 375mm x 75mm.

*Please note that sizes IP66 and greater come in packs of 2.

IP21                     50mm x 25mm

IP22                     50mm x 50mm

IP33                     75mm x 75mm

IP31                     75mm x 25mm

IP32                     75mm x 50mm

IP44                     100mm x 100mm

IP41                     100mm x 25mm

IP42                     100mm x 50mm

IP43                     100mm x 75mm

IP66                     150mm x 150mm

IP62                     150mm x 50mm

IP63                     150mm x 75mm

IP64                     150mm x 100mm

IP82                     200mm x 50mm

IP83                     200mm x 75mm

IP85                     200mm x 125mm

IP92                     225mm x 50mm

IP93                     225mm x 75mm

IP96                     225mm x 150mm

IP99                     225mm x 225mm

IP123                     300mm x 75mm

IP126                     300mm x 150mm

IP153                     375mm x 75mm



Advantages of using intumescent pads

This product provides up to 3 hours fire protection on trunking which passes through fire barrier walls, floors or ceilings.

Maintenance can be carried out on the trunking with the pads installed, due to their slim profile.

Their installation is fast, due to the self adhesive.

They can protect any quantity of cables.

Installation

Trunking which is smaller than 100mm x 100mm, only use one intumescent pad per penetration.

Trunking which exceeds this size will require two intumescent pads per penetration.



When removing the yellow adhesive covering paper, ensure the adhesive behind it does not become contaminated with dust, dirt, etc. This is to ensure correct adhesion takes place.

Place the pad within the penetration area of the trunking.

Firmly press the pad against the inside of the trunking.



For full installation instructions, please contact us via email on sales@fireproofpaint.co.uk

You can also contact us for technical advice on 01752 690997.



You may also be interested in Envirograf’s Intumescent Trunking Pillows.
