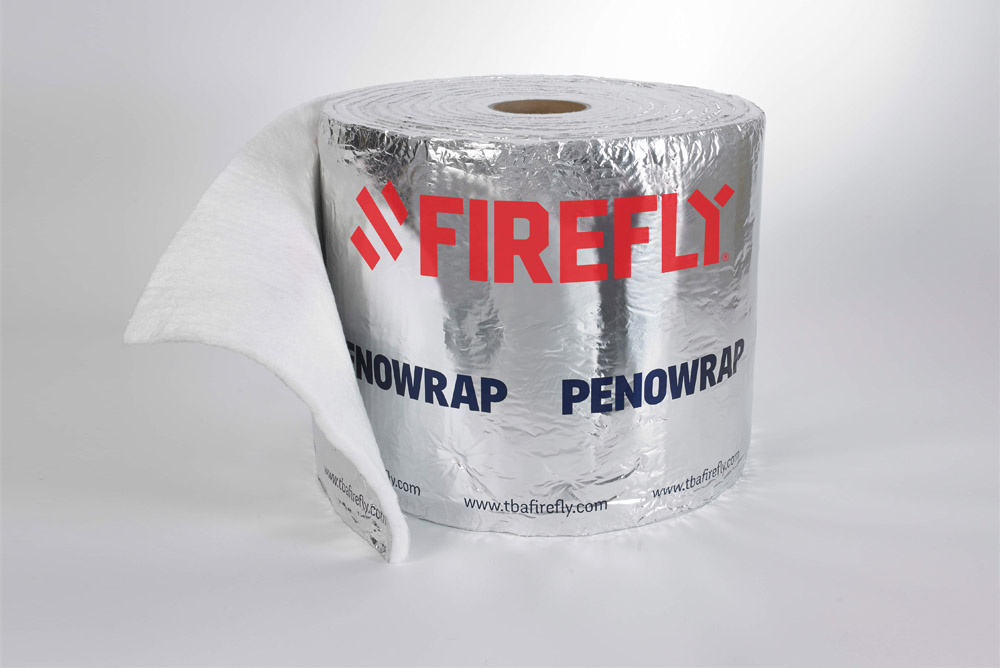

FIREFLY Penowrap is a lightweight, flexible fire wrap, used as a component within our fire barrier systems. Penowrap provides 60 minutes Integrity and 60 minutes Insulation when used to wrap exposed sections of timber and steel. Tested to BS 476 Parts 20 & 22.
USE AREAS
FIREFLY Penowrap is used as a component with other FIREFLY flexible fire barrier systems, suitable for wrapping timber and steel structure/substrate up to 300mm below the barrier for additional fire protection.
CONSTRUCTION
Manufactured using a layer of nonwoven silica with aluminium foil to the
outward face.
KEY BENEFITS
- 60 minutes Integrity, 60 minutes Insulation as part of a FIREFLY
barrier system - Tested to BS476 Parts 20 & 22
- Enhanced protection to further improve performance and resist fire pressure at the head of a structure
- Wraps and protects exposed, more vulnerable areas when used in conjunction with a FIREFLY barrier system
- Lightweight, flexible, easy to cut and install
- Utilises standard fixings, angles and high temperature adhesives approved for all FIREFLY barriers
TITLE
FIREFLY Penowrap
DESCRIPTION
Lightweight, flexible fire wrap
APPLICATION
Wrap to cover exposed timber and steel at the head of an installation, up to 300mm depth when used within a FIREFLY barriers system
PROPERTIES
Description: Non-toxic / flexible / durable. Easy to shape and cut
Coating: White / Silver foil
SPECIFICATIONS
Exceeds 60 minutes Integrity and 60 minutes Insulation when tested to BS476 Parts 20 & 22 in conjunction with a FIREFLY barrier system
CLASSIFICATIONS
Tested to BS476 parts 6 and 7 – Pass (propagation and surface spread of flame)
DIMENSIONS AND PACKAGING
Thickness: 130cm
Width: 30cm
Roll Area: 10 linear metres
Weight: 2.02 kg/m2
Any questions regarding TBA FireFly products don’t hesitate to contact the team at [email protected] or 01752690997
