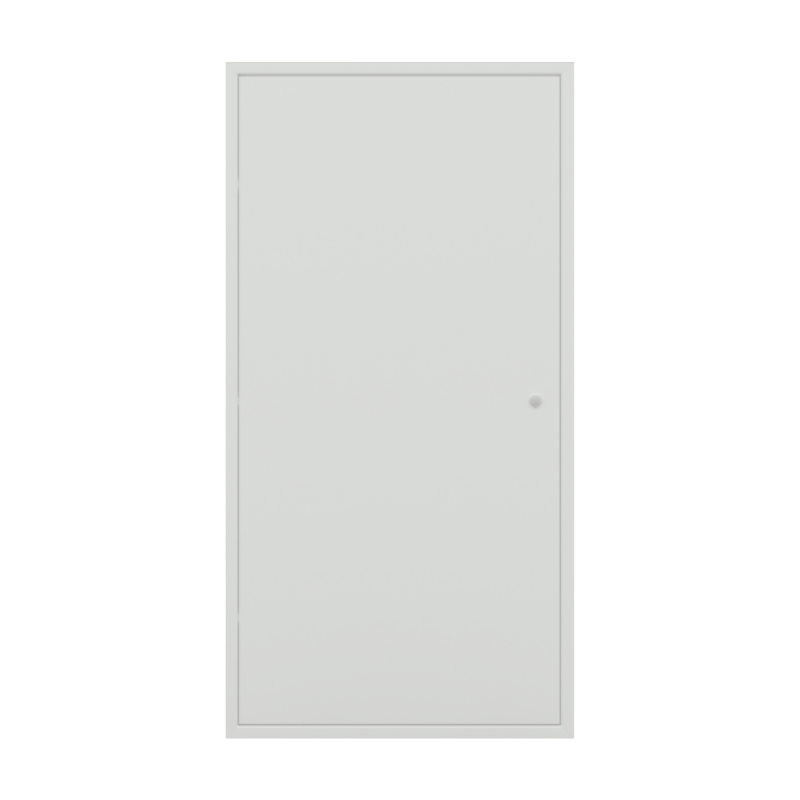

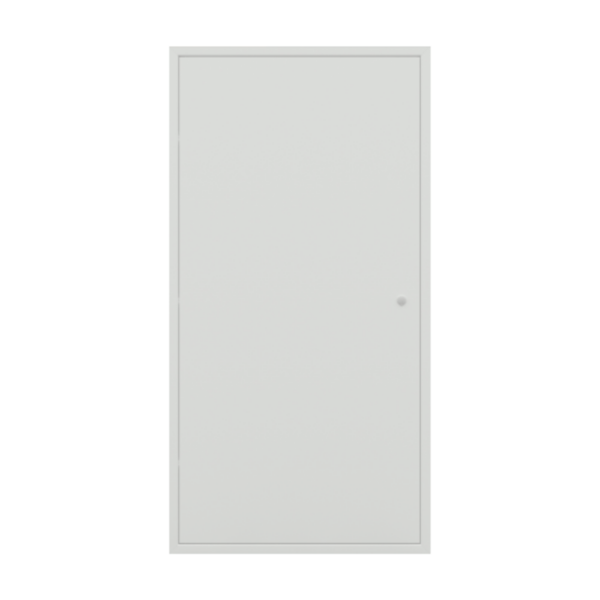

Fire rated riser doors
This panel is only suitable for wall application.
As a highly customisable item, all of our riser doors are made to measure.
The panels door leaf is locked in place via a 3 point lock as standard.
Other lock options are available upon request.
The panel is powder coated RAL 9010 30% gloss.
- Picture frame or beaded frame available
- 1 or 2 hour rating available
- Various different lock types, please ask for more details.
- Panel dimensions and measurements applied to customer specification.
- 75mm deep frame
- Different acoustic ratings and smoke insulation available for picture frame
- Price On Application
- For more information contact the office.
Riser Door Data sheets
Please see the data sheets it the tab above for our 1hr fire rated, metal door, picture frame, three way lock riser doors.
We can produce other data sheets upon request.
All of our fire rated riser doors have been fire tested to appropriate British standards. Please see the data sheets for more information.
Test data for these panels is available on request.

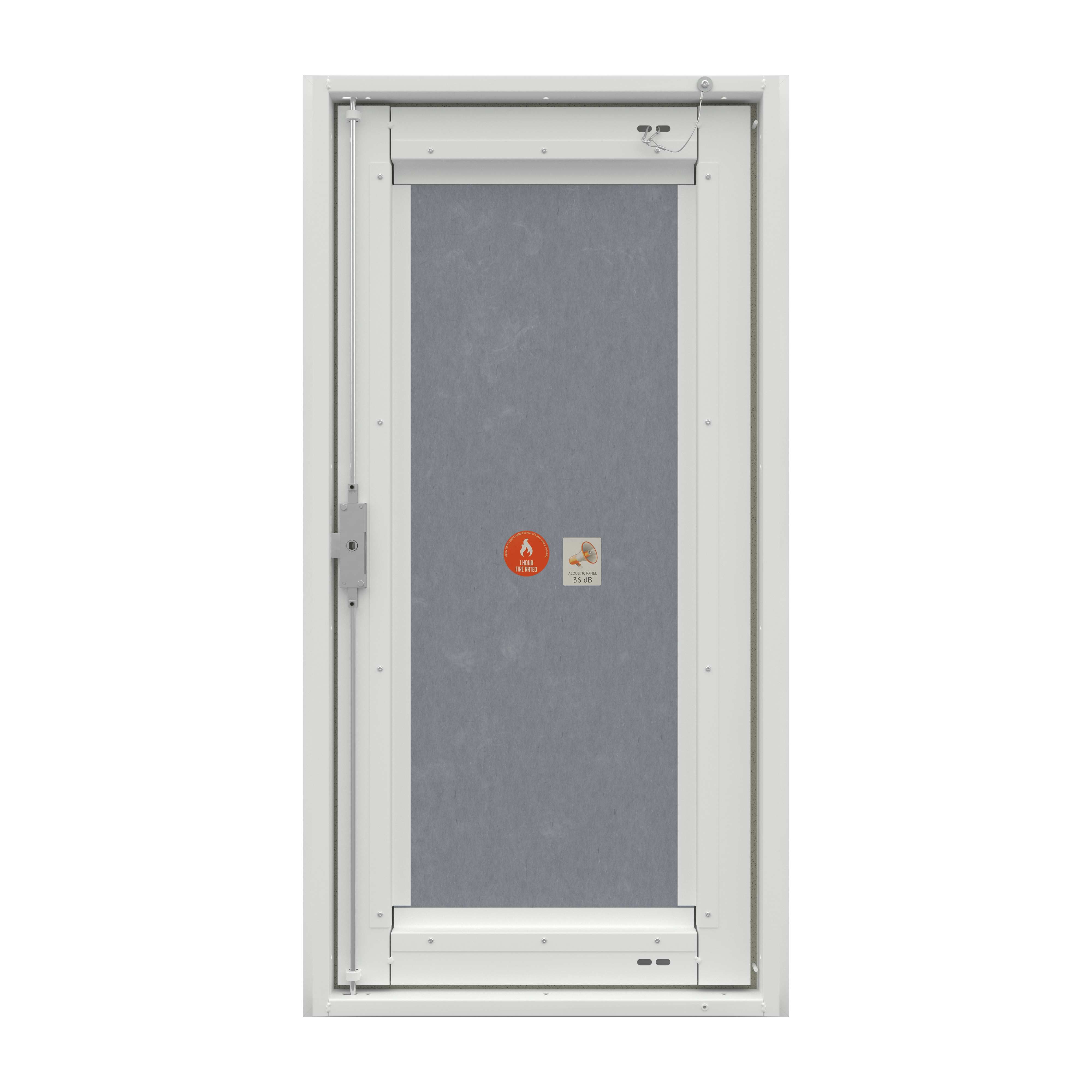

The panel is manufactured from Zintec steel with a 0.9mm thick door and a 1.2mm frame.

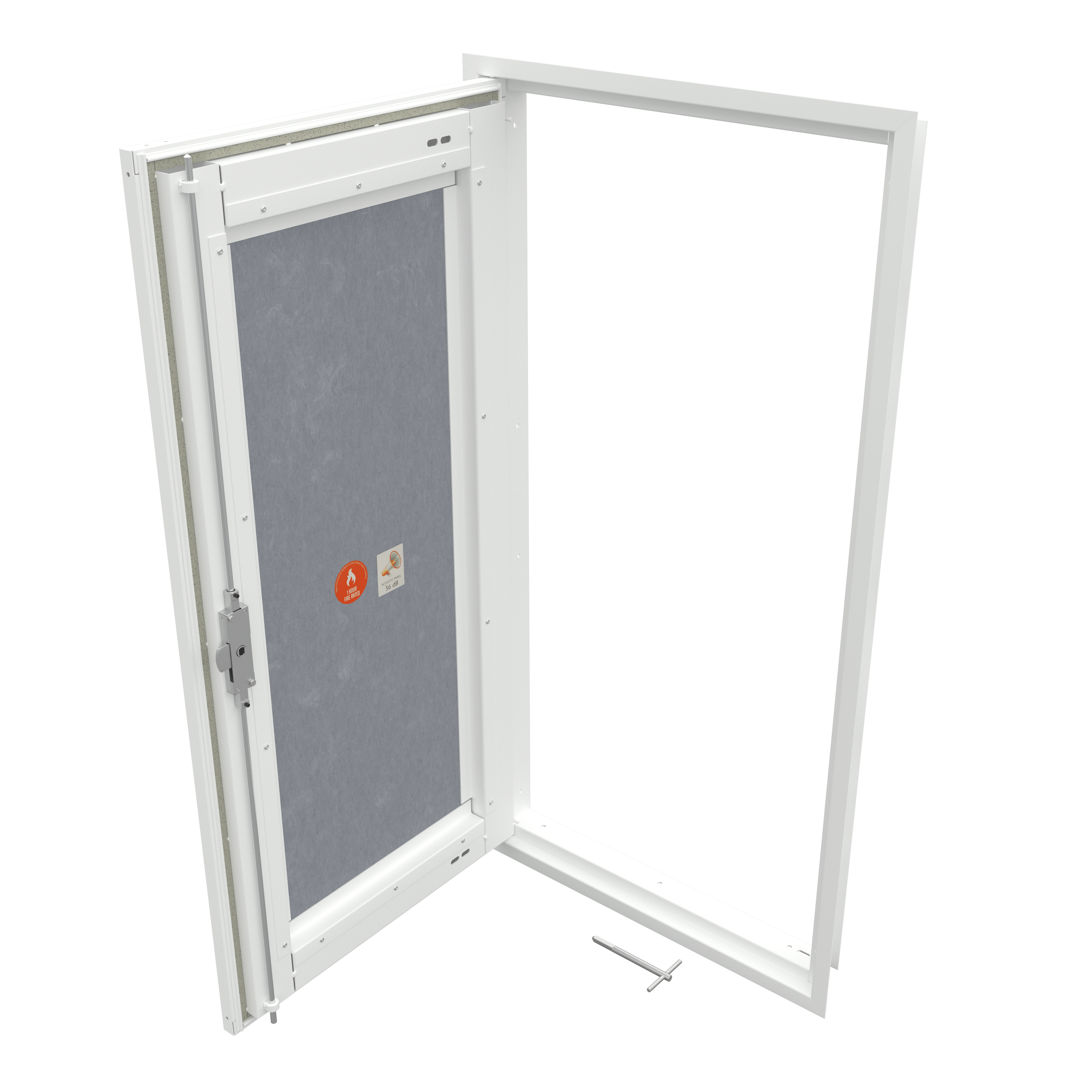

The panels’ door leaf is hinged by a Fast Fit Hinge System which saves time on fitting compared to a Full Piano Hinge system.
Smoke, acoustic and airtight rated riser doors can be manufactured if necessary. Please state if you need any of these features when requesting your quote.
The structural opening must be 7mm larger than the panel size, back of frame size.
This panel is fitted with an Ezi-fit hinge, so it is quicker to install than a standard riser door with a piano hinge.
Please contact us for a free quote.
