Flipfix Non-Fire Rated Ceramic Tile Door Wall Panel

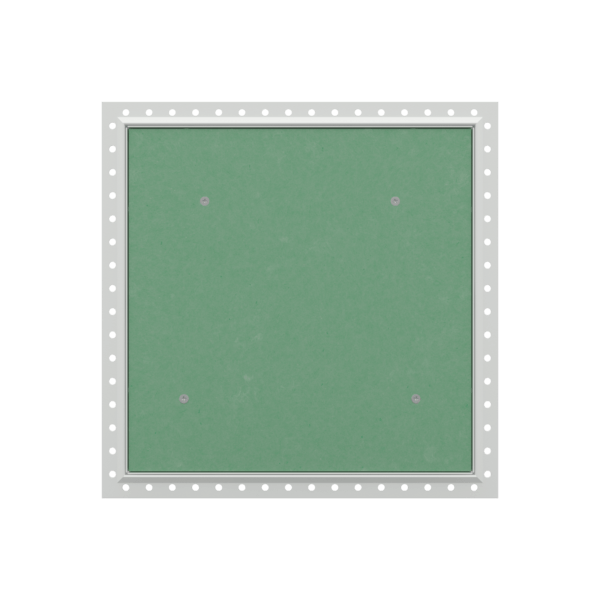

Flipfix Tile Door Beaded Frame Wall Panel

This custom-made lift-out panel is only suitable for wall application. With the FlipFix feature, it means that less time is needed to fit in comparison to standard access panels.

As a customisable item, all of our ceramic tile door panels are made to measure.

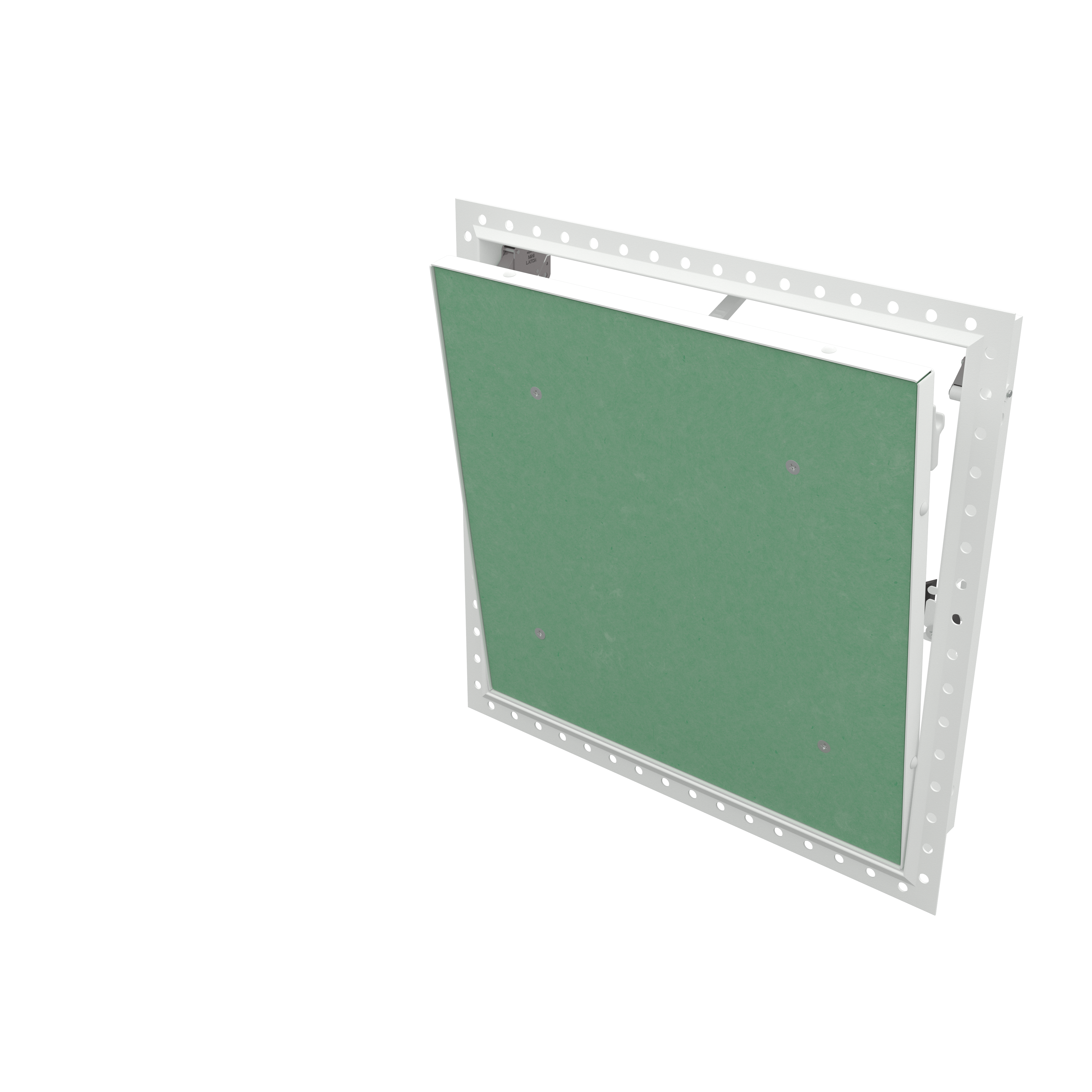

The panel has a fully demountable door which is located with via a locating angle at the bottom of the door.

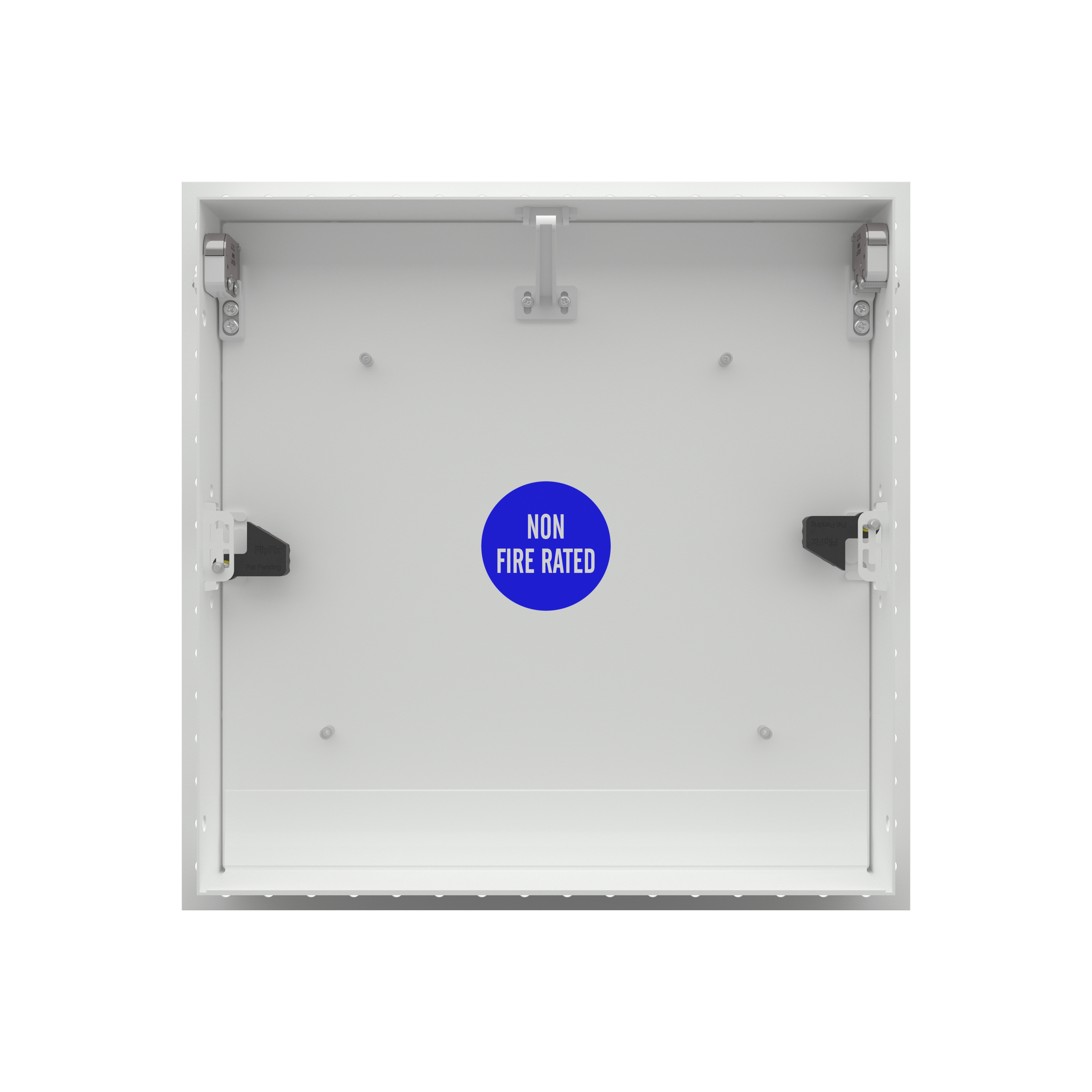

To stop the door from falling away from the frame when opening the panel, it comes with a Controlled Action device.

Size ranges are made to measure according to customer specification.

Beaded frame only

Non-fire rated, although fire rated versions are available.

Various different lock types:

• Standard Lock
• 5MB 5mm Bit
• CTL Castellated Key Lock
• TC Touch Catch (default)

Panel dimensions and measurements applied to customer specification, which means that it will meet your sizing needs and other requirements.

Price On Application

For more information and a free, no obligation, quote contact the office on 01752 690997

Construction and Installation

The panel is manufactured from Zintec steel with a 0.9mm thick door and a 1.2mm frame.

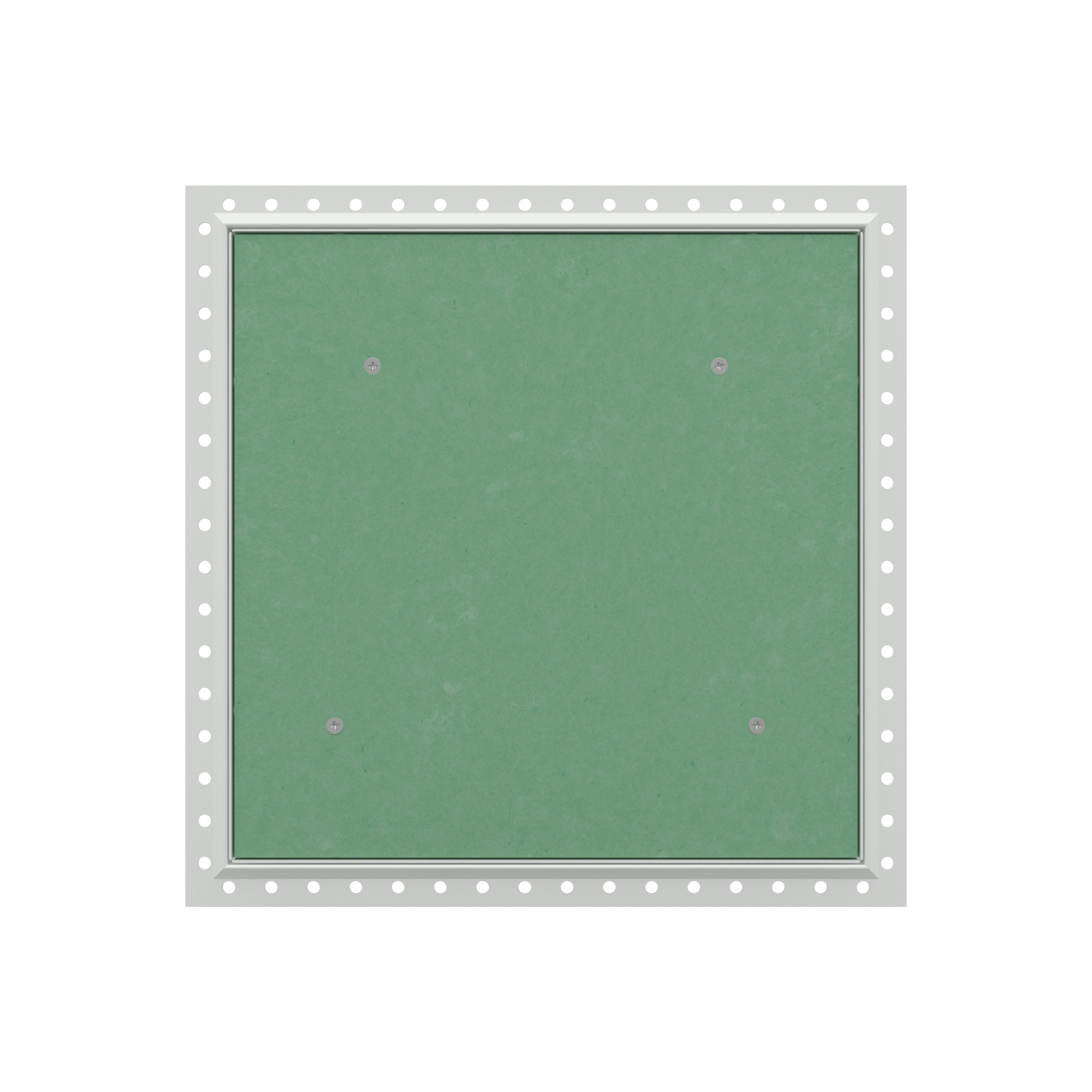

It is designed with a perforated frame and a moisture board so that tiles can adhere to it properly.

See video below for installing the panel into a wall.

When applying the tiling, the tiles should not overhang the frame or door as doing so will damage the tiles.

Technical Information

• Airtight rating – none
• Acoustic rating – none
• Air pressure testing – none
• Smoke testing – none
• Powder Coated RAL 9010 30% Gloss
• Other colours available upon request
• Structural openings should be 7mm larger than the panel size
• Fire rated versions also available
