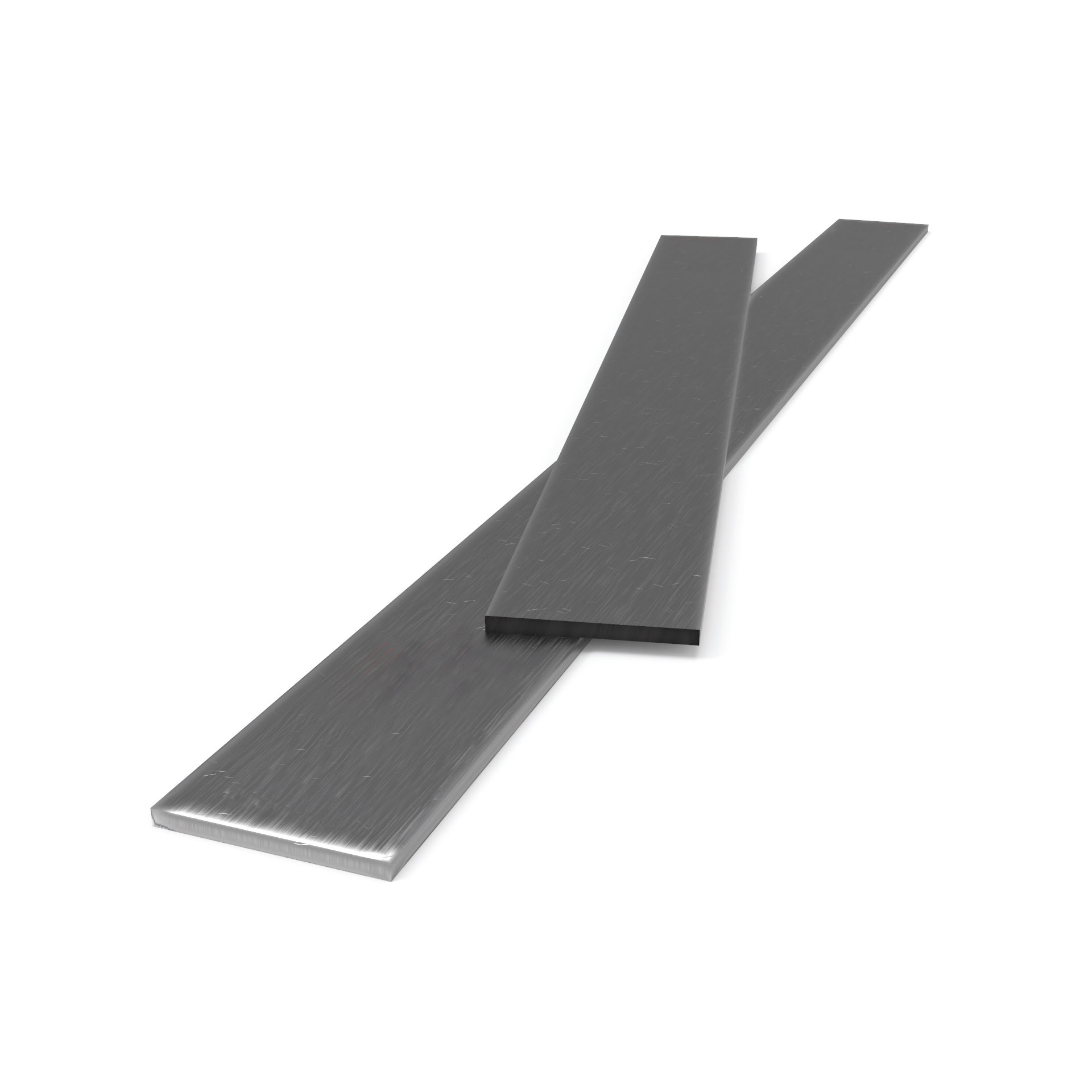

TENMAT FF102/50 Intumescent Ventilated Cavity Barrier

Availability: In Stock

£19.97 inc. VAT: £23.96

TENMAT FF102/50 INTUMESCENT CAVITY BARRIER

TENMAT FF102/50 fire barrier is designed for installation within rainscreen / timber frame cavities, to provide between 30 and 120 minutes fire resistance and a 44mm clear ventilated void.

This high expansion intumescent cavity barrier is suitable to be installed either vertically or horizontally within 50mm wide ventilated voids.

In timber frame constructions, it provides 60 minutes fire resistance when installed vertically. Horizontally, 30 minutes.

In masonry constructions, it provides 120 minutes fire resistance when installed both horizontally and vertically.

Cannot be ordered online. Please contact us on 01752 690997 for a quotation.

SKU: AST-ASTROCLAD-75X6X1000 Categories: , ,

TENMAT FF102/50 Intumescent Cavity Barrier

Main Details

Tenmat’s FF102/50 fire barrier can be installed into masonry constructions, rainscreen and timber frame cavities.

In masonry constructions, it provides 120 minutes fire resistance when installed both horizontally and vertically.

Whereas in rainscreen / timber frame cavities, it can provide between 30 and 120 minutes fire resistance when installed within a 44mm clear ventilated void.

This high expansion intumescent cavity barrier is suitable to be installed horizontally within 50mm wide ventilated voids.

In timber frame constructions, it provides 30 minutes fire resistance when installed horizontally.

Dimensions: 6mm x 75mm x 1m

Suitable for use within uninsulated, ventilated and drained “open state” cavities.

No maintenance is required once this fire barrier has been installed.



Fire Testing

Tenmat FF102/50 has been tested and assessed to the general principles of BS 476 Part 20 and 22: 1987

Please see below the field of application for this fire testing:

Construction of Inner WallConstruction of Outer WallMaximum Air Gap (mm)Void Width (mm) Including Air GapIntegrity (mins)Insulation (mins)Fixings or L-Bracket Requirement
OSB Board on a Timber FrameConcrete4450900Direct Screw Fix; See section 4.2
ConcreteHardie Plank Weather Board1925120120
ConcreteHardie Plank Weather Board2935120120
ConcreteHardie VL Plank Weather Board2935120120
ConcreteHardie VL Plank Weather Board4450120120
Cement Particleboard on steel frame systemStone Wool External Wall Slab915120120
Cement Particleboard on steel frame systemStone Wool External Wall Slab1925120120

For more test details and technical advice, please contact us.



FF102/50 Specification:

  • Suitable for a timber frame construction
  • Accommodates a maximum void of 50mm
  • Provides a 44mm clear ventilated void
  • Simple installation process
  • Suitable for installation against timber substrates
  • Tested to the general principles of BS 476 Part 20: 1987
  • Suitable for horizontal orientation
  • Provides between 30 and 120 minutes fire resistance

For more information, please contact our technical department on 01752 690997.

You can also view our other cavity barriers here.

IMPORTANT INFORMATION ON PURCHASING OF PASSIVE FIRE PROTECTION PRODUCTS NOTICE:

The information displayed about the products on this website is to be used for guidance ONLY. We advise that all customers contact our technical department to obtain a free no obligation specification and quotation before purchasing goods directly from the website.

Please be aware that any negligence caused by failure to obtain the relevant advice, or availment of our specification and estimation service, will absolve International Passive Fire Ltd from any liability should Passive Fire Protection Products prepared, or used, by the purchaser, or any other parties, result in damage to property or human life, or for any monetary costs incurred due to incorrect usage.
