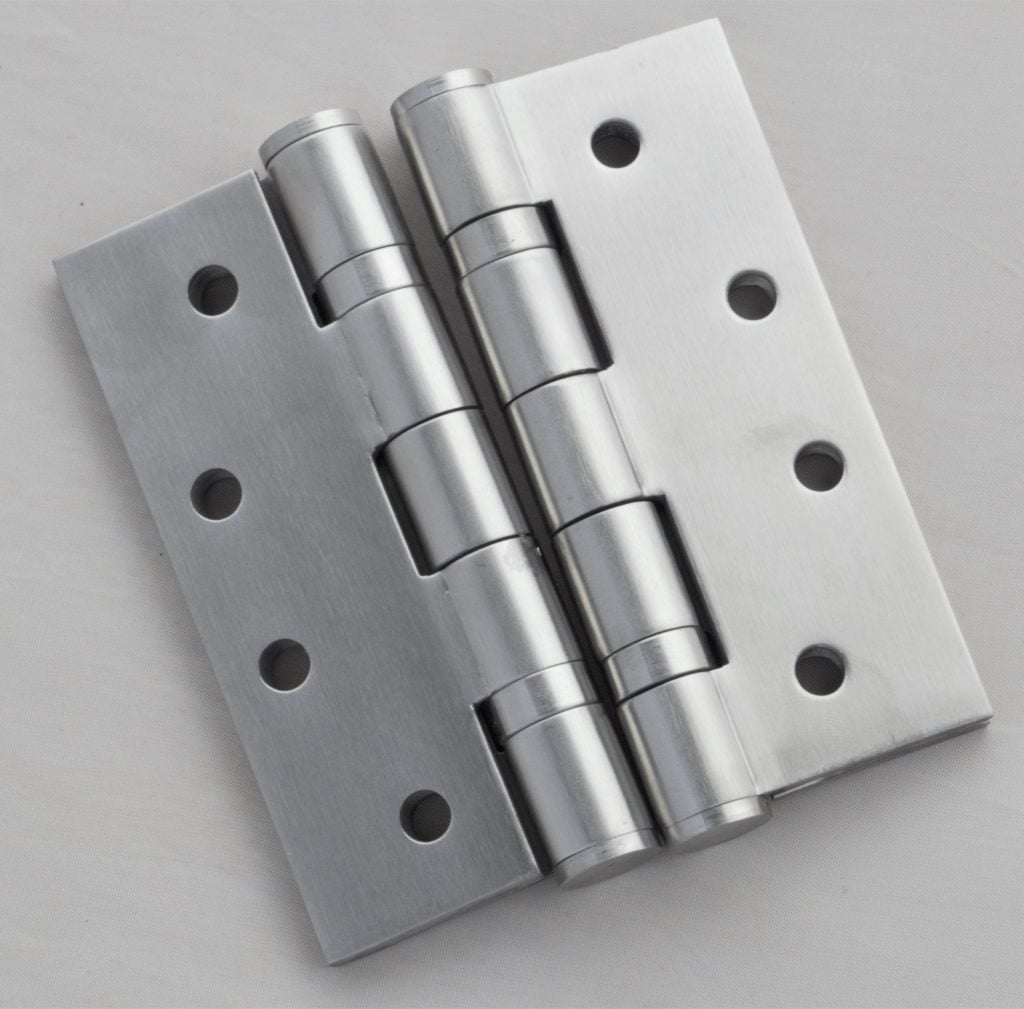

Grade 13 Fire Rated Ball Bearing Hinges

Consort’s fire rated CBH102 ball bearing hinges are sold as pairs or in packs of 3. Ensure that 3 hinges are used per fire door.

Product testing

During fire testing, they were found to achieve up to 240 minutes on metal doors and up to 120 minutes on wooden doors, in accordance with EN1634-1.

Independently tested to EN1935

These hinges have been tested to be durable to over 200 000 cycles

CE Marked. Certifire Approved. U.L Listed

They have a load bearing capacity of up to 120Kg

Dimensions of each hinge: 102 mm x 76mm x 3mm

Square corner

Please note that all hinges must be applied using intumescent hinge pads.

IMPORTANT INFORMATION ON PURCHASING OF PASSIVE FIRE PROTECTION PRODUCTS NOTICE:

The information displayed about the products on this website is to be used for guidance ONLY. We advise that all customers contact our technical department to obtain a free no obligation specification and quotation before purchasing goods directly from the website.

Products purchased directly from our website without specification will NOT qualify for certification.

Please be aware that any negligence caused by failure to obtain the relevant advice, or availment of our specification and estimation service, will absolve International Passive Fire Ltd from any liability should Passive Fire Protection Products prepared, or used, by the purchaser, or any other parties, result in damage to property or human life, or for any monetary costs incurred due to incorrect usage.
