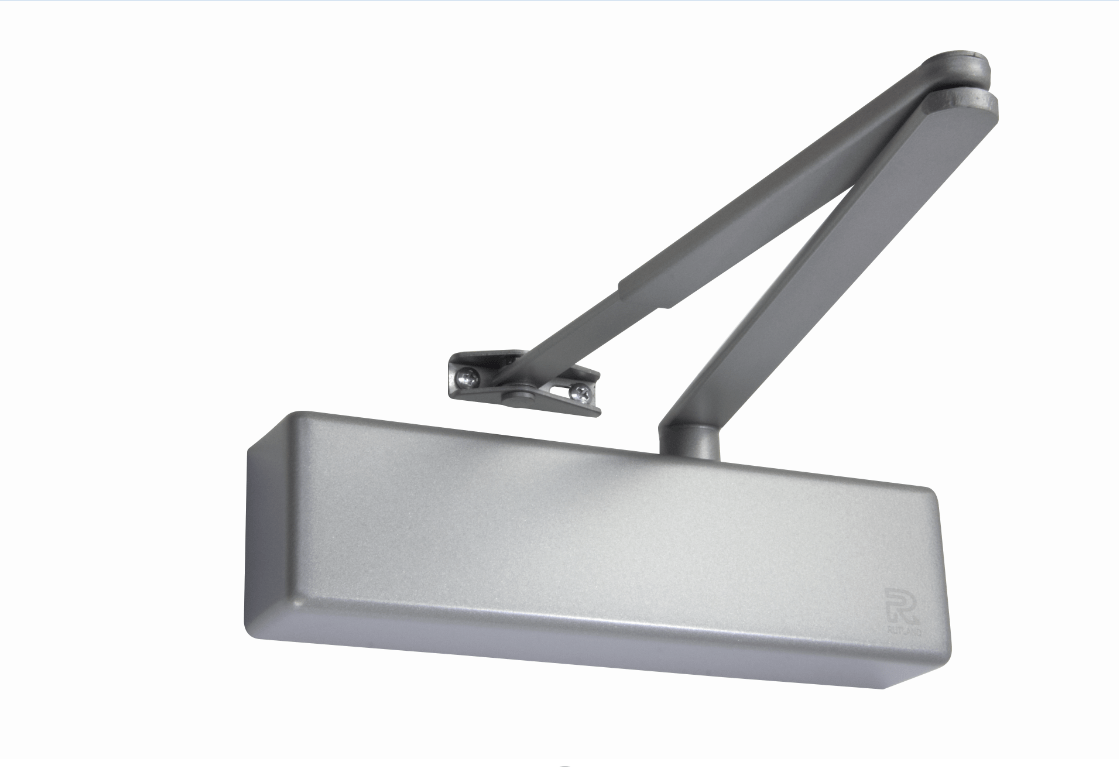

TS.4204 Door Closer by Rutland

Rutland’s TS.4204 door closer can be used on a wide range of doors, alongside other door equipment, to upgrade them to fire doors.

This door closer is suitable for doors with a maximum weight of 80kg and a maximum door width of 1100mm.

Please read on further to assess whether it would be suitable for you. You can also call our technical team on 01752 690997

Key product features

180º opening angle

10 year guarantee

The closing speed, latch speed, delayed action & back check are all adjustable

Closing power speed: EN2-4

This product has a universal application, meaning it can be used in Standard, Parallel arm or Transom fitting positions.

Standard colour finish is anodised silver, although other colours are available on request, including satin nickel, polished nickel and electro brass.* Please contact us to order different colours.

*Note, special colours come in boxes of 6 units. Silver door closers are bought individually.

Product testing for the TS.4204 door closer

It has been fire tested to EN1634 & UL 10C

In the EN 1634 testing, it underwent testing for 30, 60 and 120 minute door sets.

It carries a CE mark

Certified by the UKCA

UL listed

Please contact us if you require any test certificates.

Fitting instructions

Please view the illustrated fitting instructions in the data sheets tab above to see how to install these door closers.

Product sizes

Mechanism

The mechanism is 248mm wide, 59mm tall and 42mm deep

Cover

The cover is 252mm wide, 68mm tall and 45mm deep

For technical advice on our fire door protection and door upgrade products, please contact us on 01752 690997

You can also view the main product data sheet in the data sheets tab above.
