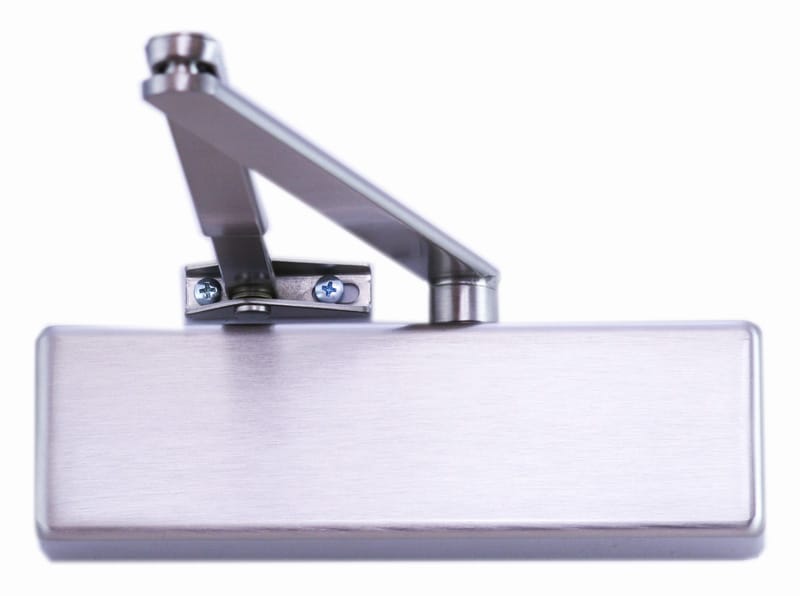

Boss Slimline Overhead Door Closer (TS5.224VBC)

Availability: In Stock

£37.80 inc. VAT: £45.36

The TS5.224VBC Size 2-4 Architectural Slimline Overhead Door Closer is designed to be installed onto timber fire doors, which require a back check feature.

It has been tested for doors which offer up to 120 minutes fire resistance. The testing was done to EN1634.

Certifire approved. Please refer to CF689 for scope of approval.

TS5.224VBC Slimline Door Closers

The Boss TS5.224VBC door closer is for timber doors which require a back check facility.

It has an adjustable closing force of EN Size 2-4.

Max Door Width/Weight – 1100mm/80Kg.

Suitable for most applications (Fig 1 & 6).

The product has an adjustable Sweep Speed, Latch Speed & Back Check.

Power Adjustable by Spring.

CE marked against EN1154.

Included in successful fire test to EN1634-1.

Certifire approved – refer to CF689 for scope of approval.


TS5.224VBC door closers come with a 25 year guarantee.

Their high corrosion resistance makes them suitable for many areas.


Please refer to the data sheets in the tab above for more information.

You can also contact our technical sales department on 01752 690997.
