Pyroplex Intumescent Fire and Smoke Seals

Pyroplex® Intumescent Fire and Cold Smoke Seals provide a traditional fire, smoke and acoustic seal for fire rated timber timber door sets. They are rebated intumescent strips and can be installed into the edge of the door or frame.

Our stock range includes a selection of sizes: 10x4mm, 15x4mm and 20x4mm. They are suitable for rebates in single and double action, single or double doors.

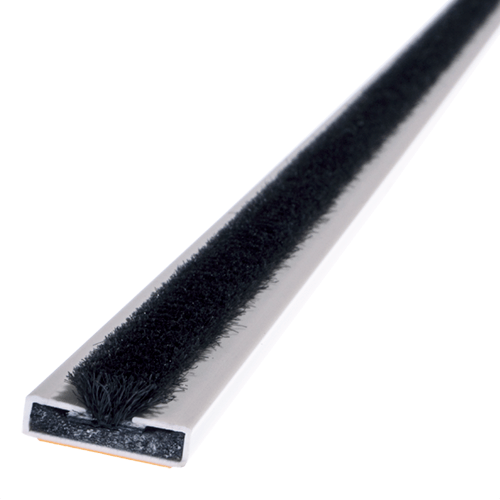

Pyroplex® Rigid Box Seals are ideal for new build applications. They are available in a choice of 2 colours, white or brown, to suit your requirements or blend with decor.

Pyroplex® Pile range of Rigid Box Seals are supplied in 2.1m lengths as standard, but please note seals will be despatched as half lengths 1050mm x 2 unless whole lengths are specifically requested, this will incur an additional delivery charge however.

Seals are quick and easy to fit with no special tools required.

Pyroplex Intumescent Fire and Smoke Seals have been tested to:

BS 476: Part 20:22 1987 and BS EN 1634-1 – fire

BS 476: Part 31.1 and BS EN 1634-3 – cold smoke

BS EN ISO 10140-2 – acoustic

The Pile range provides fire, smoke and acoustic seals which have been tested to BS 476: Part 22, BS EN 1634-3: 2004 and BS EN ISO 10140-2: 2010.

How do you install Pyroplex Intumescent Fire and Cold Smoke Seals?:

Temperatures should be between 5°C and 40°C

Locate the seal in the central channel of the door leaf or frame.

Create a suitably sized groove to fit your size of intumescent seal.

Ensure that the rebate is clean and free from dust.

Remove the adhesive backing liner from the seal, then push fit it into the groove.

To seal the bottom of the door we suggest using our Surface-Mounted acoustic drop down Seals or Acoustic & Smoke Perimeter Seals.

Please contact us on 01752 690997 or [email protected] for prices on our perimeter seals.

We also sell Envirograf’s fire and smoke seals, both rebated and surface mounted. Please follow the links for more information and/or to order.
